Guide Plate Installation Note
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

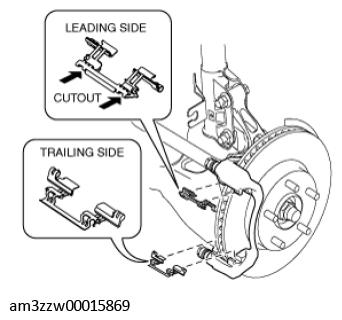

- Install the guide plate as shown in the figure.
CAUTION:
- Abnormal noises may occur from the front brake if the guide plate is installed in an abnormal position. When installing the guide plate to the mounting support, install it correctly to the mounting support as shown in the figure.
