Microphone Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
  3. While pressing the tabs A of the voice recognition microphone in the direction of the arrows (1) shown in the figure using a tape-wrapped flat head screwdriver, pull the voice recognition microphone in the direction of the arrow (2) shown in the figure to detach the tabs A of the voice recognition microphone from the front map light.
    Fig 1: Pressing Tabs A Of Voice Recognition Microphone
    G11448808Courtesy of MAZDA MOTORS CORP.
  4. While pulling the tabs B of the voice recognition microphone in the direction of the arrow (1) shown in the figure, pull the voice recognition microphone in the direction of the arrow (2) shown in the figure to detach the tabs B of the voice recognition microphone from the front map light.

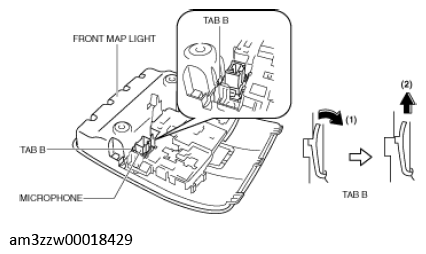

    Fig 2: Pulling Tabs B Of Voice Recognition Microphone
    G11448809Courtesy of MAZDA MOTORS CORP.
  5. Remove the microphone.
  6. Install in the reverse order of removal.
