Steering Switch Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the driver-side air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .)

Switch the ignition off.
Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)

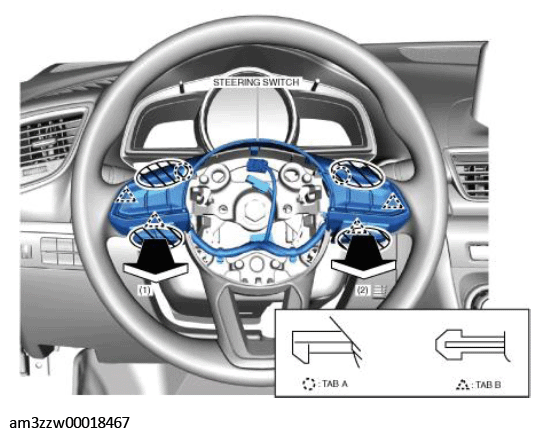

Grasp the shaded areas shown in the figure, and pull the steering switch in the direction of the arrow in the order of (1), (2) while detaching the tabs A and tabs B.

Fig 1: Pulling Steering Switch And Grasping Shaded Areas
Courtesy of MAZDA MOTORS CORP.

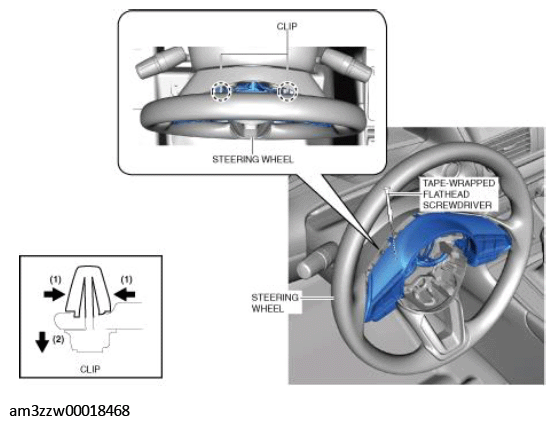

Insert the tape-wrapped flat head screwdriver into the position shown in the figure, while pressing the clip tabs in the direction of the arrows (1) shown in the figure, press the clips in the direction of the arrow (2) to detach the clip tabs from the steering wheel.

Fig 2: Inserting Tape-Wrapped Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Disconnect the steering switch connectors.
Remove the steering switch.
Install in the reverse order of removal.
