Connector Removal Note
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- If sand or other particles get into the connector, it may be difficult to remove. To prevent damaging the connector, be careful not to use excessive force when disconnecting it.

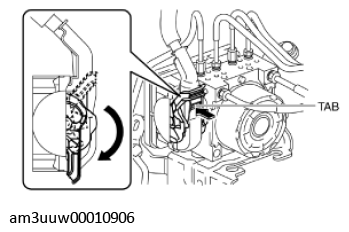

- Pull the lock lever down in the direction of the arrow while pressing the tab of the connector cover.
- Pull the connector toward the vehicle rear and remove it.
