Front Heat Duct Removal/Installation: Driver-side

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the side wall (driver-side). (See SIDE WALL REMOVAL/INSTALLATION .)
Insert a flathead screwdriver in the position shown in the figure, lift it up in the direction of the arrow.

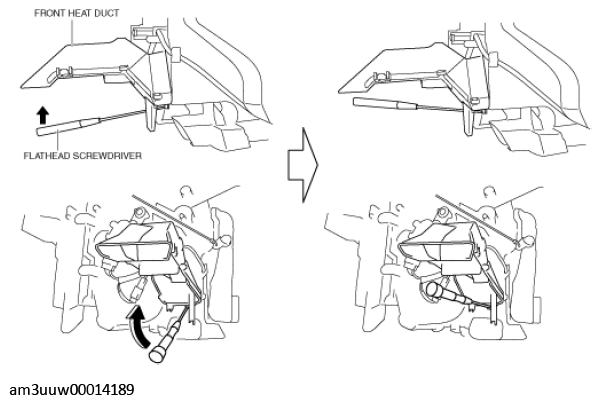

Fig 1: Removing Front Heat Duct
Courtesy of MAZDA MOTORS CORP.
Detach the tab while lifting up the front heat duct in the direction of the arrow.

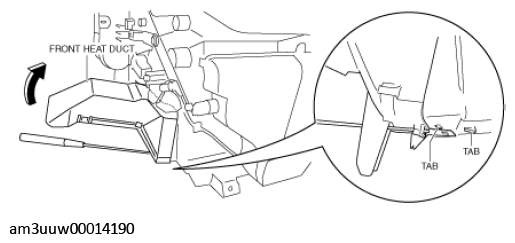

Fig 2: Removing Front Heat Duct Tab
Courtesy of MAZDA MOTORS CORP.
Remove the front heat duct.

Fig 3: Removing Front Heat Duct
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
