Forced As-Built Data Entry Tech Tip (MT-006/17)

WARNING: This page is about the CX-9 Grand Touring, AWD, which is a different variant/trim than selected.

Publication date: 2017-05-10
Reference number: MT-006/17

FORCED AS-BUILT DATA ENTRY TECH TIP

TECHNICAL SERVICE BULLETIN

Reference Number(s): MT-006/17, Date of Issue: 05/10/2017

MAZDA:

All Models

DESCRIPTION

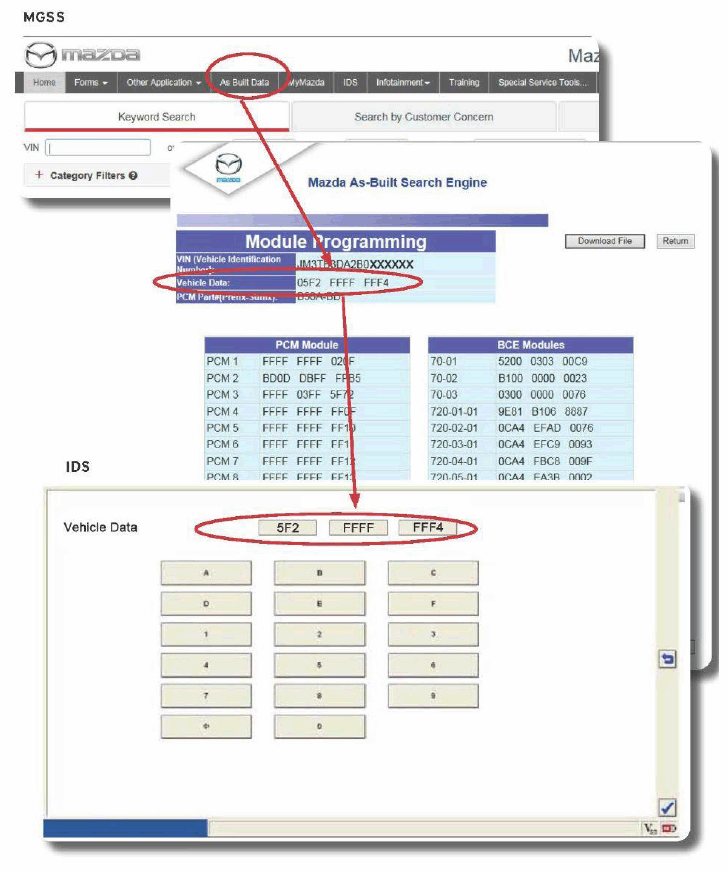

When performing a forced as-built data entry, some vehicles may have a Vehicle Data prefix of 0. Do not input the Vehicle Data prefix of 0 into IDS. See example below:

Example:

MGSS ACTUAL VEHICLE DATA NUMBER

MGSS Actual Vehicle Data Number	Input Vehicle Data number into IDS
0552 FFFF FFF4	552 FFFF FFF4
