CX-9 Touring, FWD
›
Repair and Diagnosis
›
Accessories & Equipment
›
Memory Modules
›
On-Board Diagnostic - Position Memory Control Module
›
On-Board Diagnostic Wiring Diagram [Position Memory Control Module]
On-Board Diagnostic Wiring Diagram [Position Memory Control Module]

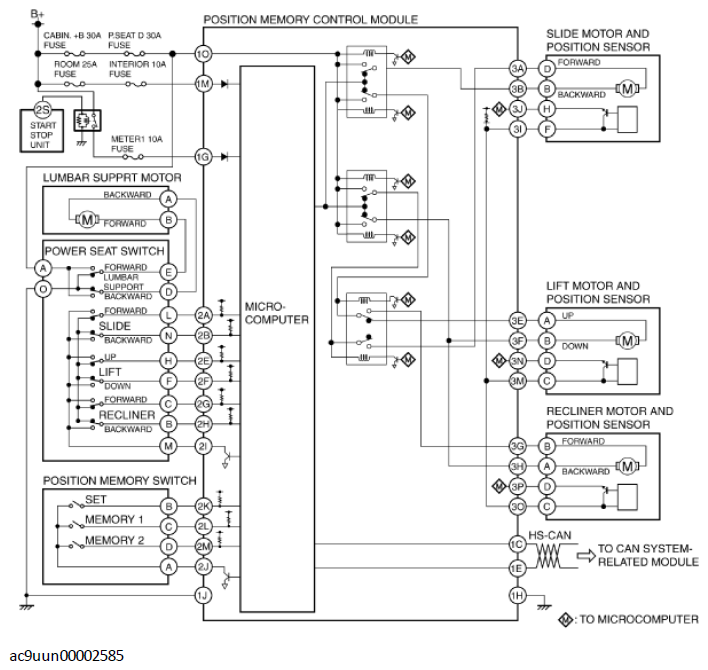

Fig 1: Position Memory Control Module On-Board Diagnostic Wiring Diagram
