On-Board Diagnostic - Retractable Fastback Control Module
›
On-Board Diagnostic Wiring Diagram [Retractable Fastback Control Module]
On-Board Diagnostic Wiring Diagram [Retractable Fastback Control Module]

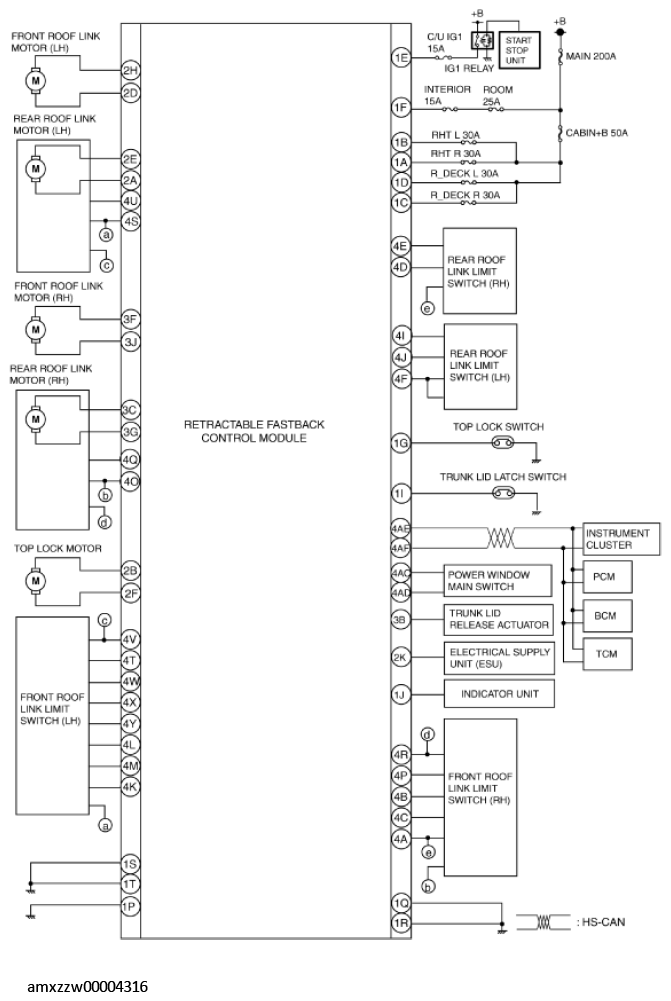

Fig 1: Retractable Fastback Control Module Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
