| Detection condition |
- The retractable fastback control module receives a signal from the top lock motor while the top lock motor is not operating.
|
| Fail-safe |
- Stops retractable fastback operation
|
| Possible cause |

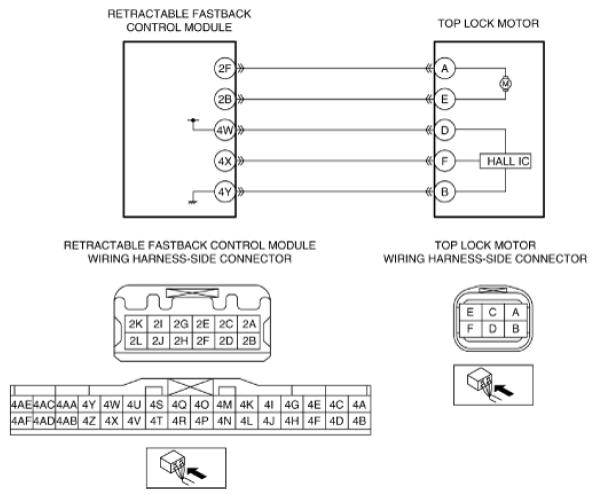

- Short to power supply in wiring harness between retractable fastback control module terminal 2B and top lock motor terminal E
- Short to power supply in wiring harness between retractable fastback control module terminal 2F and top lock motor terminal A
- Retractable fastback control module malfunction
- top lock motor malfunction
|
|
|
