Inspection using an oscilloscope (reference)

Roof link motor hall sensor

Terminal connected: power retractable hardtop control module 4P (RH), 4T (LH)-Negative battery terminal

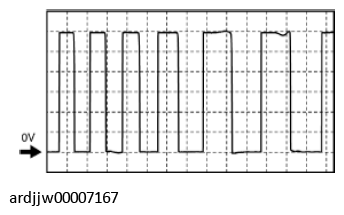

Fig 1: Roof Link Motor Hall Sensor Voltage Characteristics (4P)
Courtesy of MAZDA MOTORS CORP.
Oscilloscope setting: 2 V/DIV (Y): 5 ms/DIV (X), DC range
Measurement condition: When the front roof is moving.

NOTE:

Pulse interval varies with the front roof operation speed.

Rear roof link motor hall sensor

Terminal connected: power retractable hardtop control module 4Q (RH), 4U (LH)-Negative battery terminal

Fig 2: Roof Link Motor Hall Sensor Voltage Characteristics (4Q)
Courtesy of MAZDA MOTORS CORP.
Oscilloscope setting: 2 V/DIV (Y): 5 ms/DIV (X), DC range
Measurement condition: When the rear roof is moving.

NOTE:

Pulse interval varies with the rear roof operation speed.

Top lock motor hall sensor

Terminal connected: power retractable hardtop control module 4X-Negative battery terminal

Fig 3: Roof Link Motor Hall Sensor Voltage Characteristics (4X)
Courtesy of MAZDA MOTORS CORP.
Oscilloscope setting: 2 V/DIV (Y): 5 ms/DIV (X), DC range
Measurement condition: When the top lock is moving.

NOTE:

Pulse interval varies with the top lock operation speed.
