Door Glass Removal/Installation: Removal

1. Perform the door glass preparation. (See Door Glass Preparation ).
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
3. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION ).
4. Remove the door module panel. (See DOOR MODULE PANEL REMOVAL/INSTALLATION ).

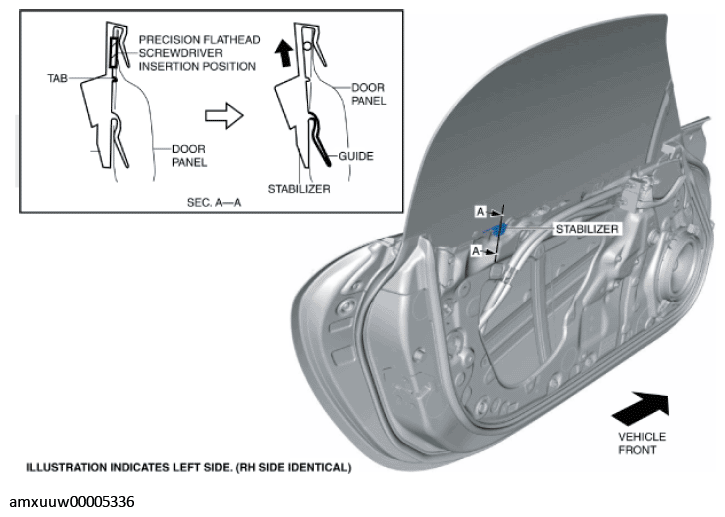

5. Insert a precision flathead screwdriver into the position shown in the figure and detach the stabilizer tab.
   Fig 1: Removing Stabilizer Tab Using Flathead Screwdriver

   Courtesy of MAZDA MOTORS CORP.
6. Remove the nuts.
   Fig 2: Identifying Door Glass And Nuts

   Courtesy of MAZDA MOTORS CORP.

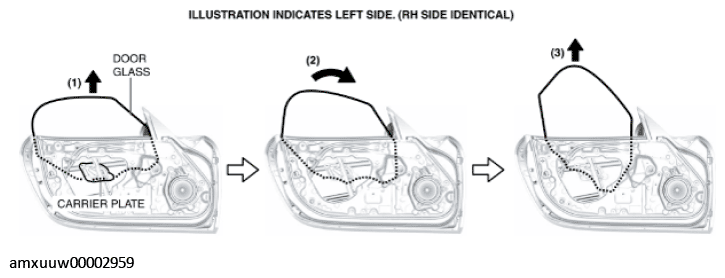

7. Lift up the door glass in the direction of arrow (1) avoiding the carrier plate shown in the figure, and while tilting it in the direction of arrow (2), move it in the direction of arrow (3) to remove it from the door.

Fig 3: Lifting Door Glass

Courtesy of MAZDA MOTORS CORP.
