Door Quarter Glass Removal/Installation: Installation

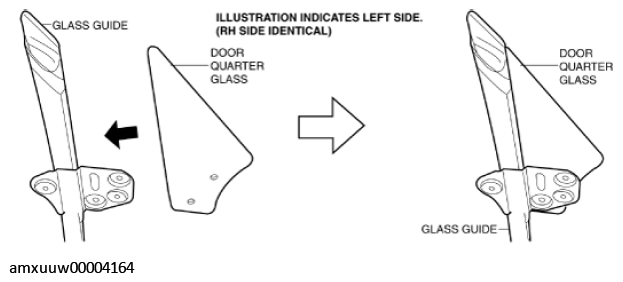

Move the door quarter glass in the direction of the arrow shown in the figure and press it into the glass guide.

Fig 1: Pressing Door Quarter Glass Into Glass Guide
Courtesy of MAZDA MOTORS CORP.

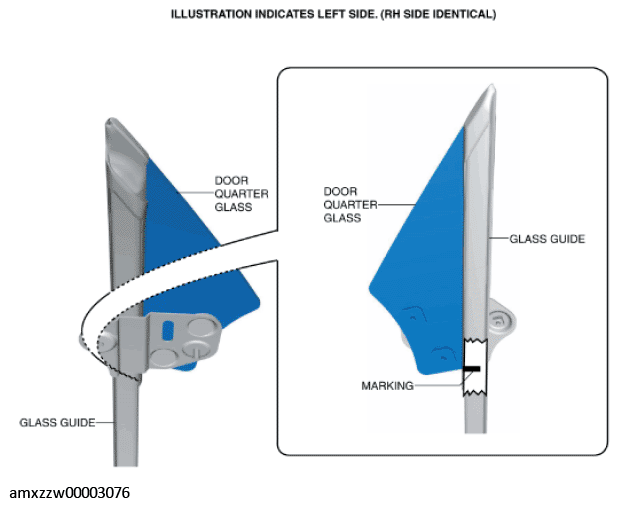

Align the door quarter glass lower end with the marking shown in the figure.

Fig 2: Aligning Door Quarter Glass Lower End And Marking
Courtesy of MAZDA MOTORS CORP.
Install the bolts.

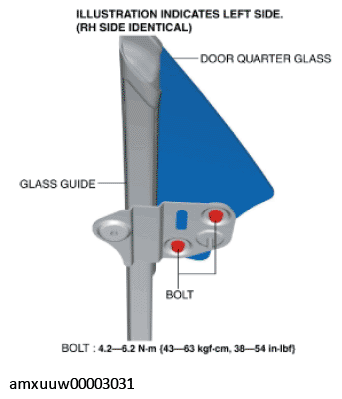

Fig 3: Identifying Door Quarter Glass, Glass Guide And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Insert the door quarter glass and the glass guide as a single unit into the door panel. (See Glass Guide Installation Note ).

Fig 4: Identifying Door Quarter Glass And Glass Guide
Courtesy of MAZDA MOTORS CORP.
Install the bolt.

Fig 5: Identifying Glass Guide, Bolt And Nuts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install the nut (2).
Install the nut (1).
Install the service hole cover.

Fig 6: Identifying Door Panel And Service Hole Cover
Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION ).
2. Door glass (See DOOR GLASS REMOVAL/INSTALLATION ).
3. Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION ).
4. Door trim (See DOOR TRIM REMOVAL/INSTALLATION ).
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
