Power Window System Wiring Diagram [Power Window System]

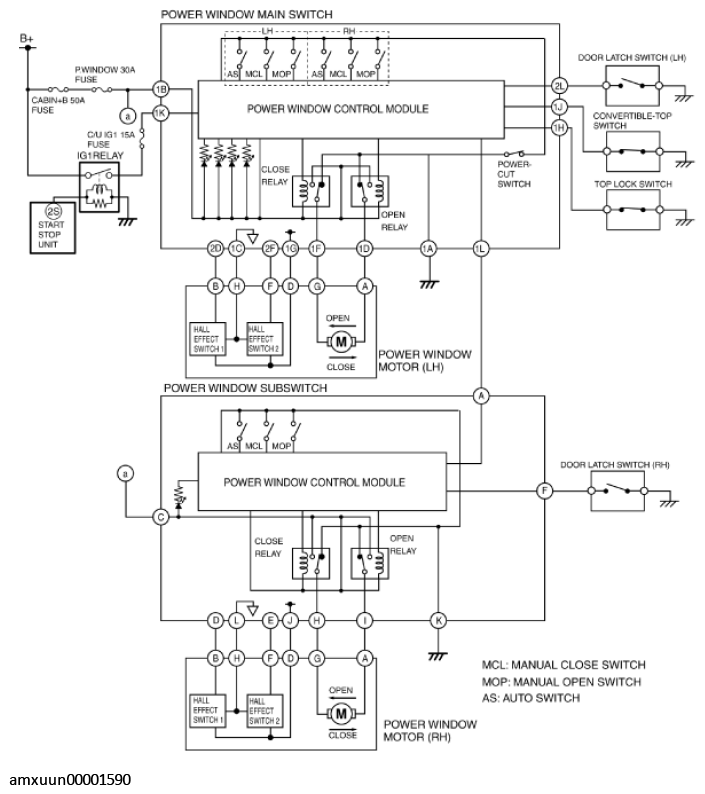

Fig 1: Power Window System Wiring Diagram
G11273657Courtesy of MAZDA MOTORS CORP.
