Bolt Installation Note

Tighten the bolt A to the specified torque.

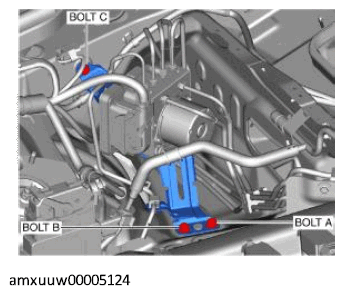

Fig 1: Brake Pipe Clip Bolts
Courtesy of MAZDA MOTORS CORP.

Tightening torque

19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}
Tighten the bolt B to the specified torque.
Tightening torque

19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}
Tighten the bolt C to the specified torque.
Tightening torque

19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}
