MX-5 Miata Club, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel System
›
Fuel System Flow Diagram
Fuel System Flow Diagram

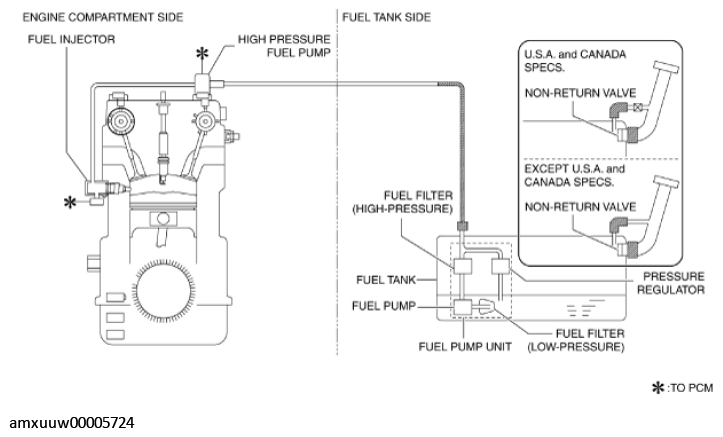

Fig 1: Fuel System Flow Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
