Refrigerant Line Installation Note (1)
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Apply compressor oil to the O-rings and connect the joints.
- Tighten the joint bolt or nut by hand.CAUTION:
- When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

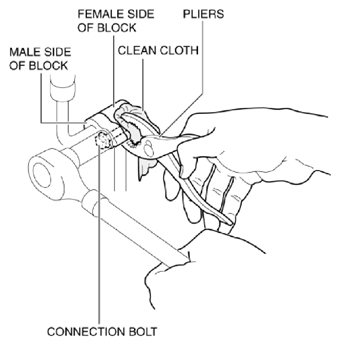

- Connect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.
