Tie-Rod End Replacement

Remove the snap pin from the tie-rod end.

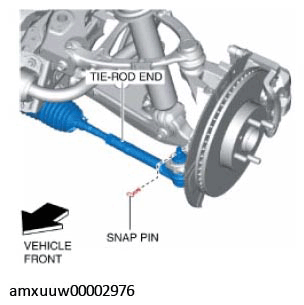

Fig 1: Removing Snap Pin From Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Loosen the tie-rod end nut.

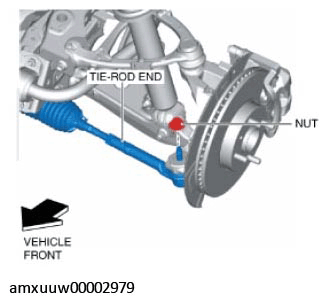

Fig 2: Identifying Tie-Rod End Nut And Nut
Courtesy of MAZDA MOTORS CORP.
Using the SST, disconnect the steering knuckle and tie-rod end.

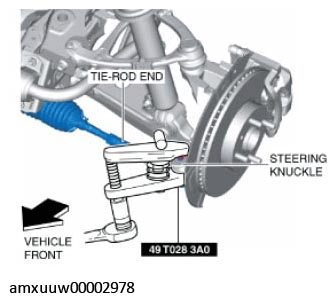

Fig 3: Disconnecting Steering Knuckle And Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Remove the nut from the tie-rod end.

Fig 4: Removing Nut From Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Place alignment marks as shown in the figure for proper installation.

Fig 5: Identifying Alignment Mark On Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Remove the tie-rod end.

Fig 6: Removing Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Place alignment marks on the new tie-rod end in the same positions as the removed tie-rod end.

Fig 7: Identifying Tie-Rod End Alignment Mark
Courtesy of MAZDA MOTORS CORP.
Align the marks that were made before removing the tie-rod end, and assemble the tie-rod end to the tie rod.

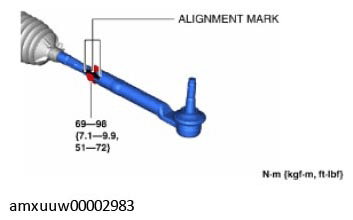

Fig 8: Identifying Alignment Mark On Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Verify that dimension A shown in the figure is within the specification.

Fig 9: Measuring Tie-Rod End Length
Courtesy of MAZDA MOTORS CORP.

Specification

49.8-63.8 mm {1.97-2.51 in} (difference between left and right: 3 mm {0.1 in} or less)
- If not within the specification, make adjustments so that dimension A is within the specification.
Install the tie-rod end to the steering knuckle.

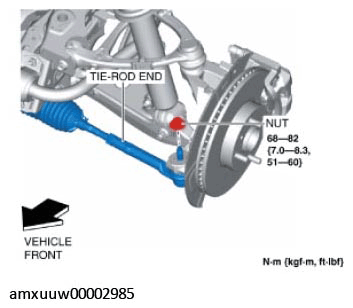

Fig 10: Installing Tie-Rod End To Steering Knuckle
Courtesy of MAZDA MOTORS CORP.
Install the snap pin to the tie-rod end.

Fig 11: Installing Snap Pin To Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT ).
