Nut, Washer and Control Rod Component Removal Note

Secure the control rod component with an adjustable wrench as shown in the figure.

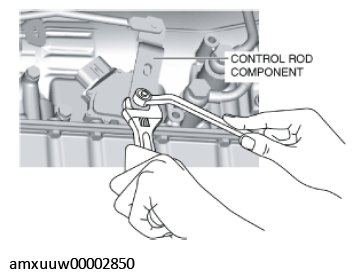

Fig 1: Securing Control Rod Component With Adjustable Wrench
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not use an impact wrench.
- When loosening the control rod nut, secure the control rod component without applying torque within the AT.
Remove the control rod nut.

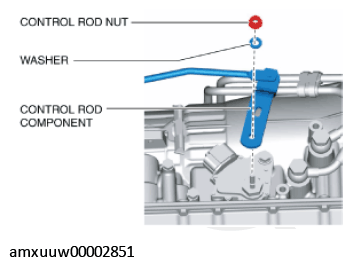

Fig 2: Identifying Control Rod Nut, Washer And Control Rod Component
Courtesy of MAZDA MOTORS CORP.
Remove the washer and control rod component.
