Clutch Unit Removal/Installation: Notes

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
Remove the transmission. (See TRANSMISSION REMOVAL/INSTALLATION [M66M-D] ).
Remove in the order indicated in the table.
Install in the reverse order of removal.

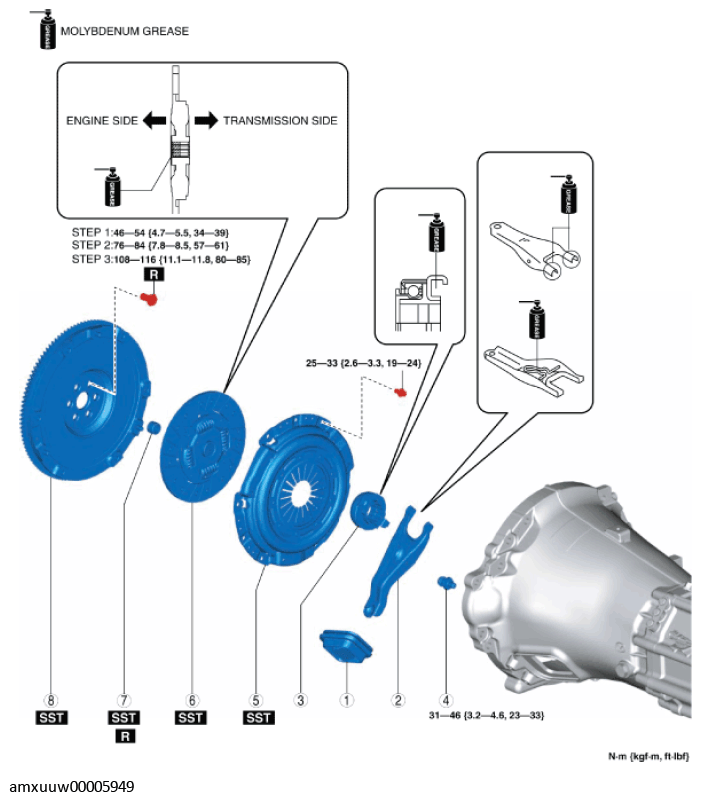

Fig 1: Exploded View Of Clutch Unit With Torque Specification

G11279444

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Boot
2	Clutch release fork
3	Clutch release collar
4	Pivot pin
5	Clutch cover (See Clutch Cover and Clutch Disc Removal Note .) (See Clutch Disc and Clutch Cover Installation Note .)
6	Clutch disc (See Clutch Cover and Clutch Disc Removal Note .) (See Clutch Disc and Clutch Cover Installation Note .)
7	Pilot bearing (See Pilot Bearing Removal Note .) (See Pilot Bearing Installation Note .)
8	Flywheel (See Flywheel Removal Note .) (See Flywheel Installation Note .)
