3 Sport, 4D Hatchback, Automatic Trans
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
On-Board Diagnostics - Dynamic Stability Control (DSC)
›
Dynamic Stability Control System Wiring Diagram Dynamic Stability Control (DSC)
Dynamic Stability Control System Wiring Diagram Dynamic Stability Control (DSC)

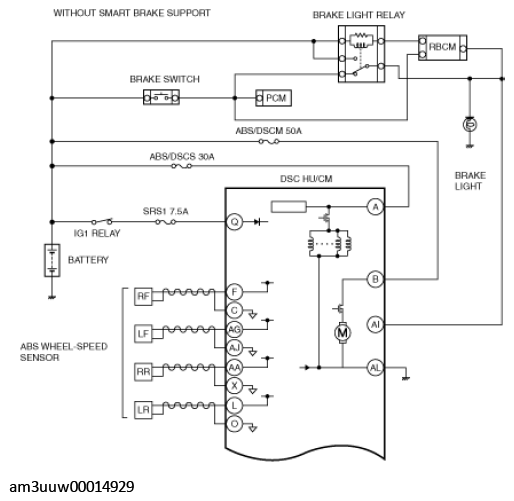

Fig 1: Dynamic Stability Control System Wiring Diagram (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

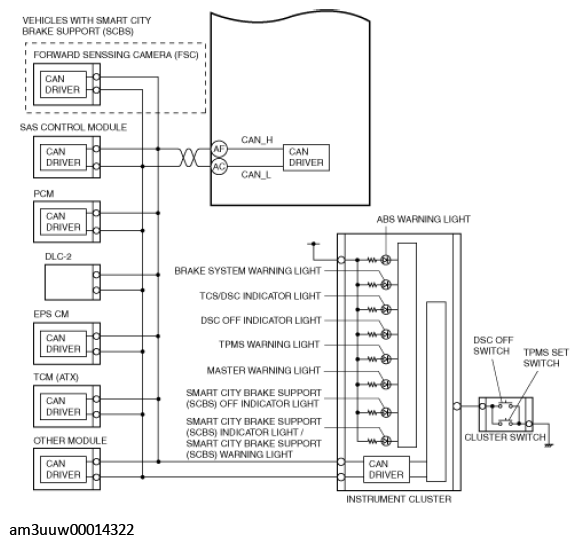

Fig 2: Dynamic Stability Control System Wiring Diagram (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

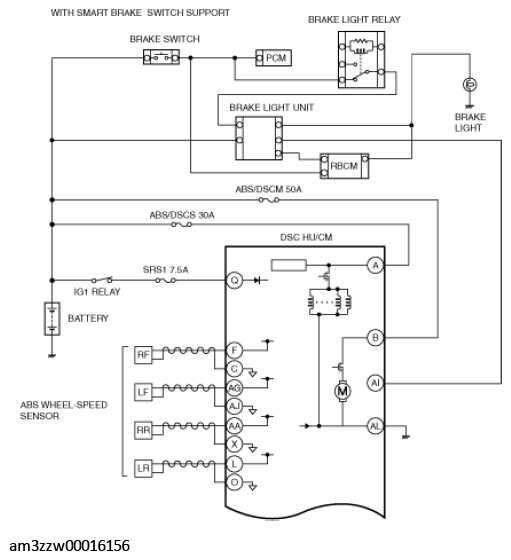

Fig 3: Dynamic Stability Control System Wiring Diagram (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
