Power Window System Wiring Diagram [Power Window System]

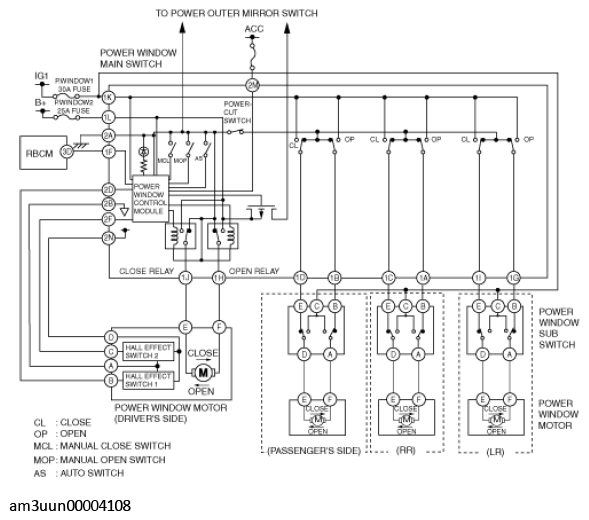

Fig 1: Power Window System Wiring Diagram (Power Window System)
G11453008Courtesy of MAZDA MOTORS CORP.
