EVAP system malfunction determination

• The M-MDS detects small/large leaks or blockage based on the fuel tank pressure at the end of the EVAP test.

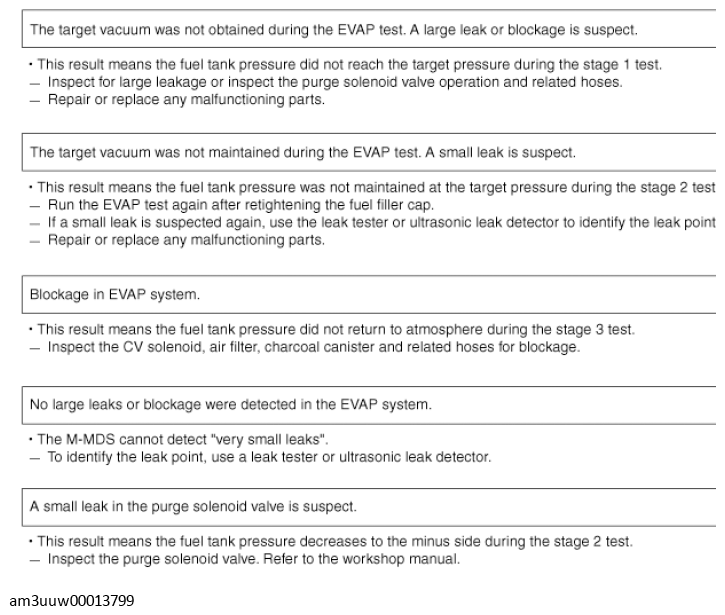

Fig 1: Detecting Small/Large Leaks Or Blockage

Courtesy of MAZDA MOTORS CORP.
