Troubleshooting Procedure

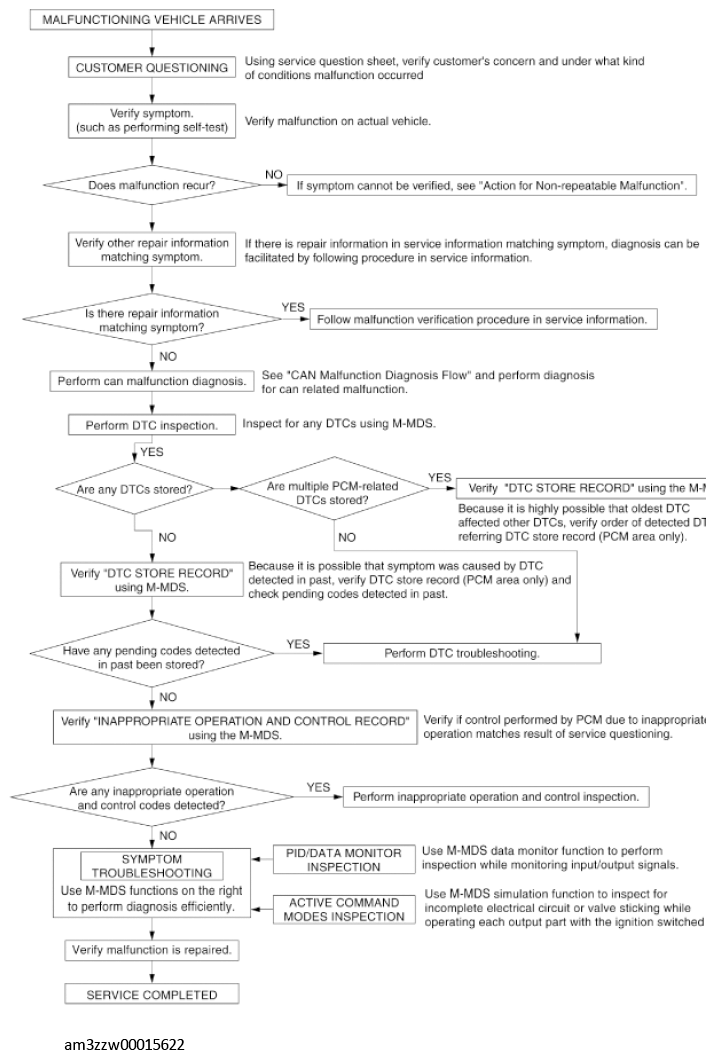

Fig 1: Malfunctioning Vehicle Troubleshooting Flowchart

G11550456

Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
