Driver-Side With Memory Power Seat

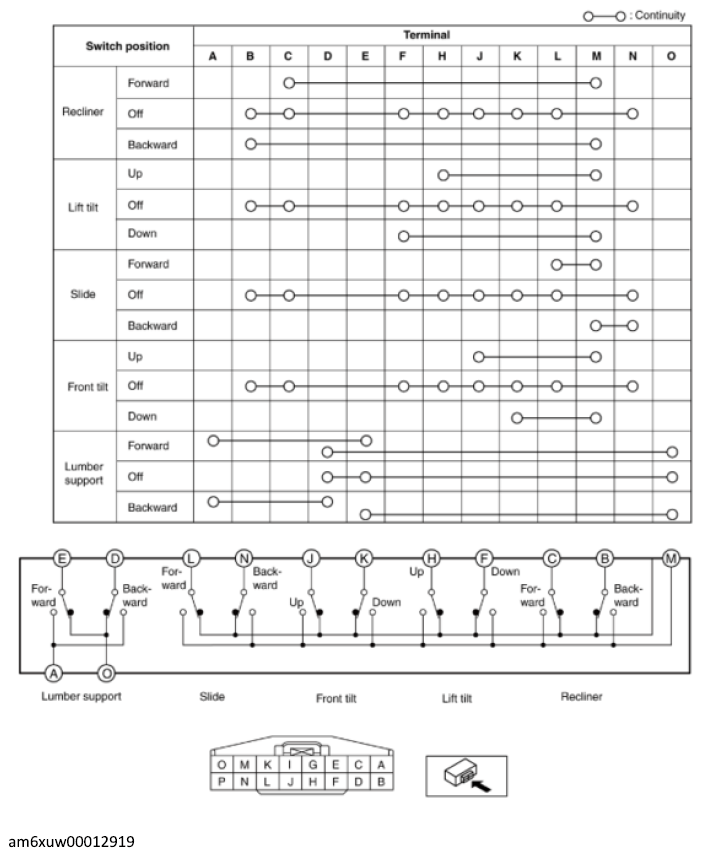

Fig 1: Power Seat Switch Circuit Diagram - Driver-Side With Memory Power Seat
G12236115Courtesy of MAZDA MOTORS CORP.
