Mirror Glass Adjustment
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION
.)
- Remove the following parts:
- Inner garnish
- Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION
.)
- Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)

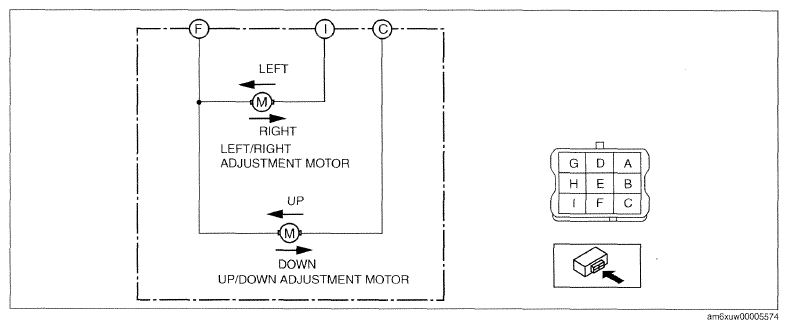

- Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.
Courtesy of MAZDA MOTORS CORP.
- If the power outer mirror does not operate as indicated in the table, replace the power outer mirror.
| MIRROR OPERATION DIRECTION |
BATTERY POSITIVE VOLTAGE CONNECT TERMINAL |
GROUND CONNECT TERMINAL |
| Up |
C |
F |
| Down |
F |
C |
| Left |
I |
F |
| Right |
F |
I |
