Quick Release Connector Assembly Note

NOTE:

If the quick release connector O-ring is damaged or has slipped, replace the fuel hose.

Inspect the fuel hose and fuel pipe sealing surface for damage and deformation.
- If there is any malfunction, replace it with a new one.
Install the quick release connector.

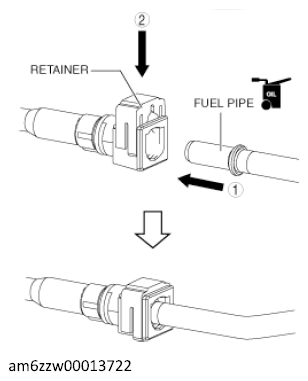

Fig 1: Inserting Fuel Pipe Straight
Courtesy of MAZDA MOTORS CORP.
- Insert the fuel pipe straight to the end of the quick release connector.
- Push down the retainer using a finger.
  - If the retainer cannot be pushed down, push the fuel pipe further to the quick release connector.
Lightly pull and push the quick release connector a few times by hand, and then verify that it is connected securely.
Perform the fuel leakage inspection referring to "AFTER SERVICE PRECAUTION".
