No. 1 Engine Mount: Notes

WARNING: This page is about a different variant/trim than selected.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

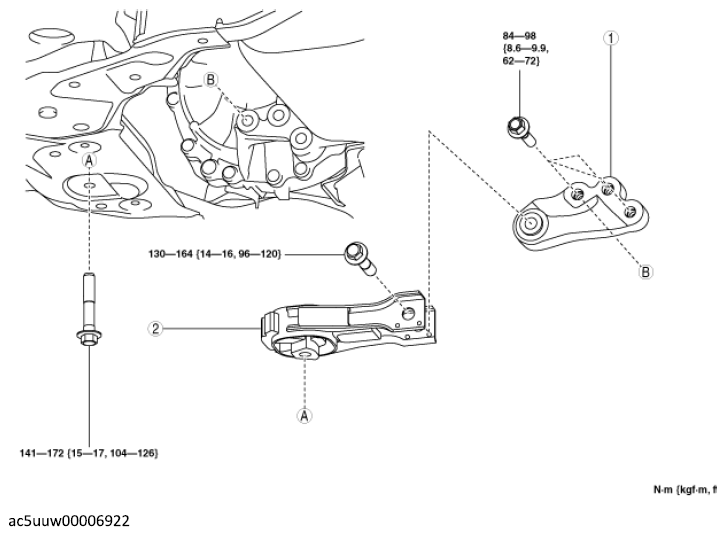

Fig 1: Engine Mount Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	No. 1 engine mount bracket (See No. 1 engine mount installation note .)
2	No. 1 engine mount rubber (See No. 1 engine mount installation note .)
