Plug Hole Plate Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

If the rubber on only one side of the plug hole plate front is lifted up, it could damage the rear adapters shown in the figure below. When removing the plug hole plate, lift up the rubber at the front of the plug hole plate at the same time.

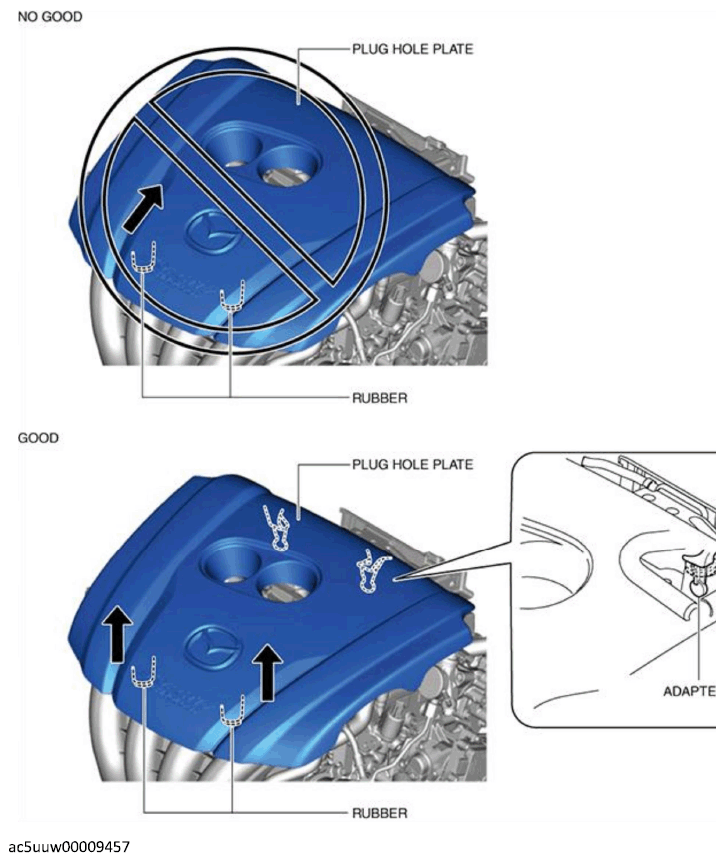

Fig 1: Caution For If Rubber On Only One Side Of Plug Hole Plate Front Lifted Up, It Could Damage Adapter

Courtesy of MAZDA MOTORS CORP.
