Selector Cable End (Transaxle Side) Installation Note
- Install a clip to the groove of the selector cable end (transaxle side).
CAUTION:

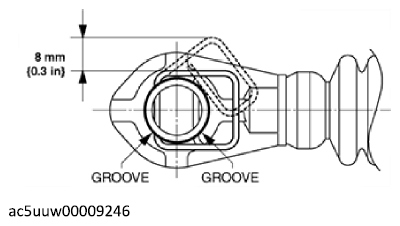

- Pull the clip within the range shown in the figure below. If the clip is pulled excessively, it could deform and no longer function.
Courtesy of MAZDA MOTORS CORP.
