Control cable ends (transaxle side) installation note

Verify that the shift control module is in the neutral position.
CAUTION:

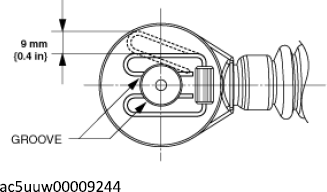

- Pull the lock pin within the range shown in the figure. If the lock pin is pulled excessively, it could deform and no longer function.
Fig 1: Checking Lock Pin With Range
Courtesy of MAZDA MOTORS CORP.
Install the lock pin to the groove of the control cable end.

Fig 2: Installing Control Cable End To MTX
Courtesy of MAZDA MOTORS CORP.
Connect the control cable end to the MTX.
