Quick Diagnostic Chart

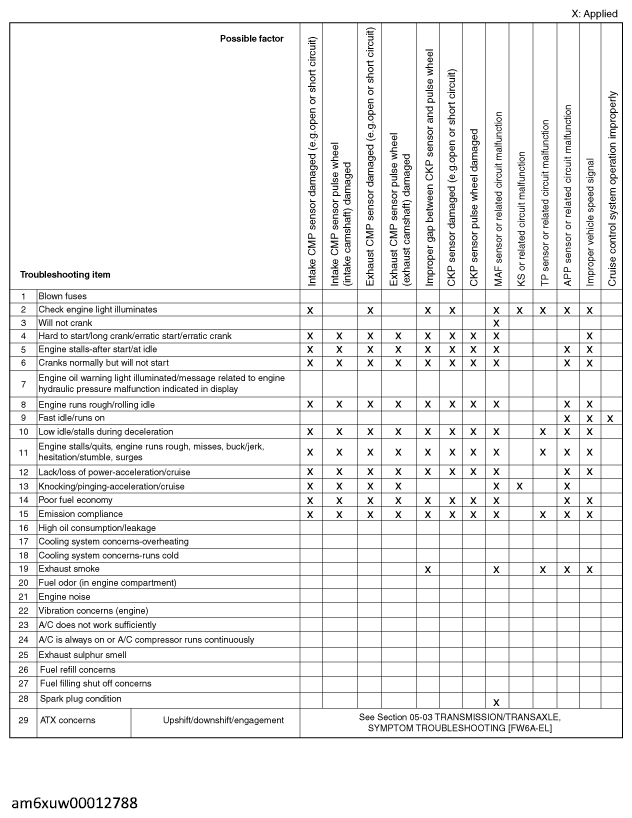

Fig 1: Quick Diagnostic Chart - Skyactiv-G 2.5 (With Cylinder Deactivation; 1 Of 8)

Courtesy of MAZDA MOTORS CORP.

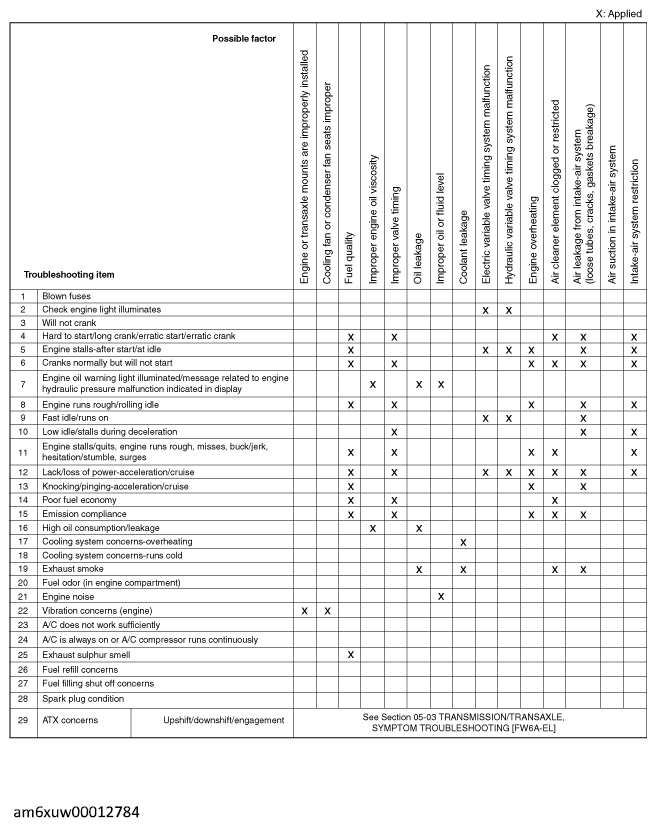

Fig 2: Quick Diagnostic Chart - Skyactiv-G 2.5 (With Cylinder Deactivation; 2 Of 8)

Courtesy of MAZDA MOTORS CORP.

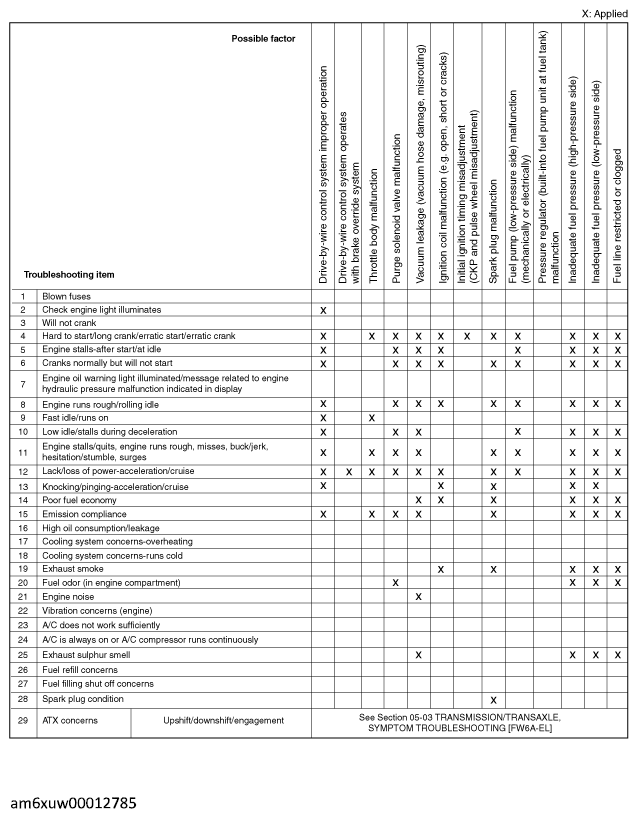

Fig 3: Quick Diagnostic Chart - Skyactiv-G 2.5 (With Cylinder Deactivation; 3 Of 8)

Courtesy of MAZDA MOTORS CORP.

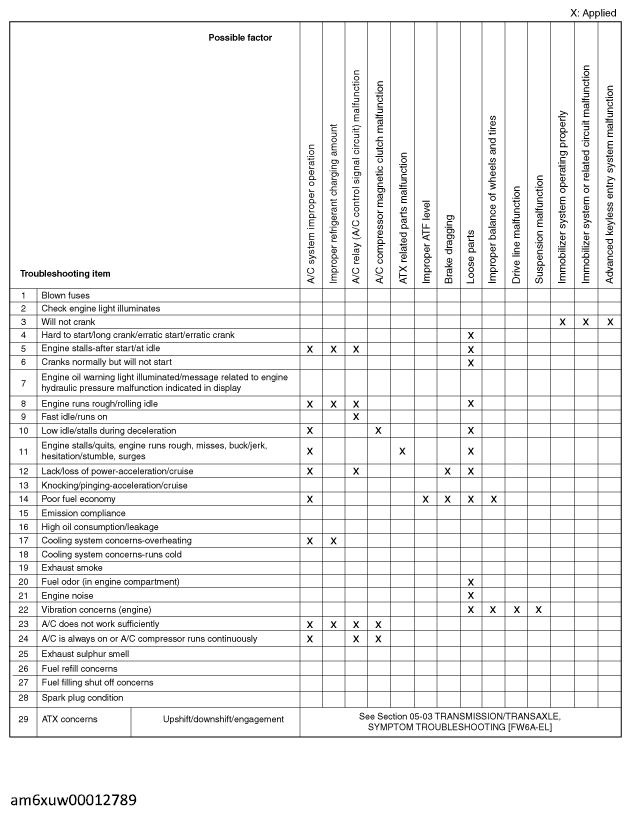

Fig 4: Quick Diagnostic Chart - Skyactiv-G 2.5 (With Cylinder Deactivation; 4 Of 8)

Courtesy of MAZDA MOTORS CORP.

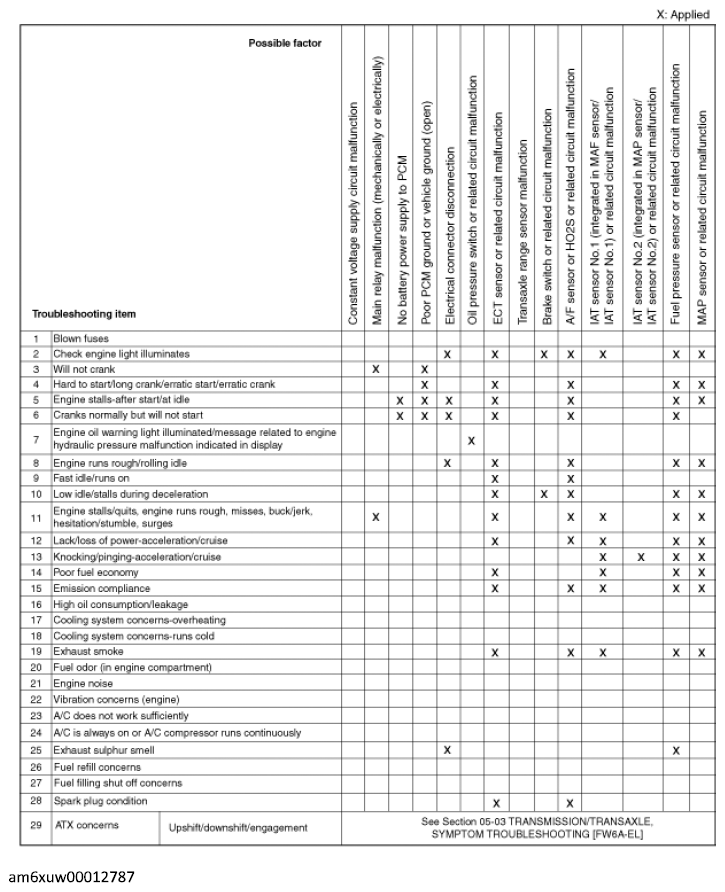

Fig 5: Quick Diagnostic Chart - Skyactiv-G 2.5 (With Cylinder Deactivation; 5 Of 8)

Courtesy of MAZDA MOTORS CORP.

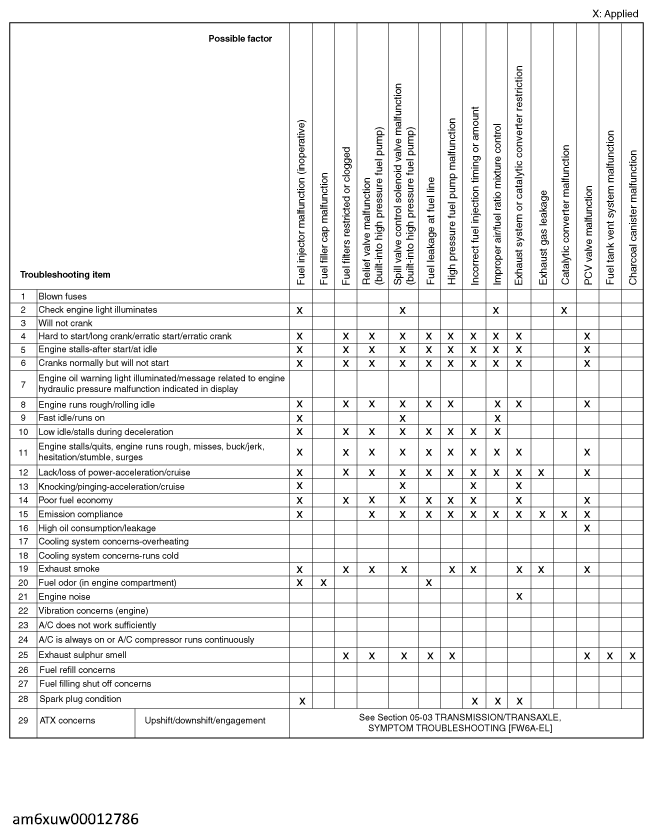

Fig 6: Quick Diagnostic Chart - Skyactiv-G 2.5 (With Cylinder Deactivation; 6 Of 8)

Courtesy of MAZDA MOTORS CORP.

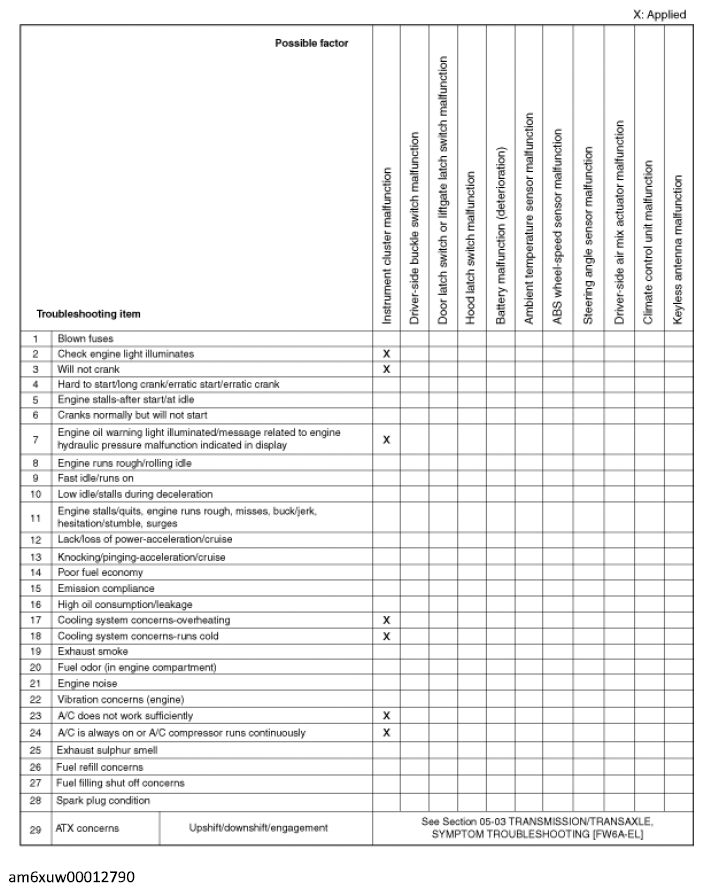

Fig 7: Quick Diagnostic Chart - Skyactiv-G 2.5 (With Cylinder Deactivation; 7 Of 8)

Courtesy of MAZDA MOTORS CORP.

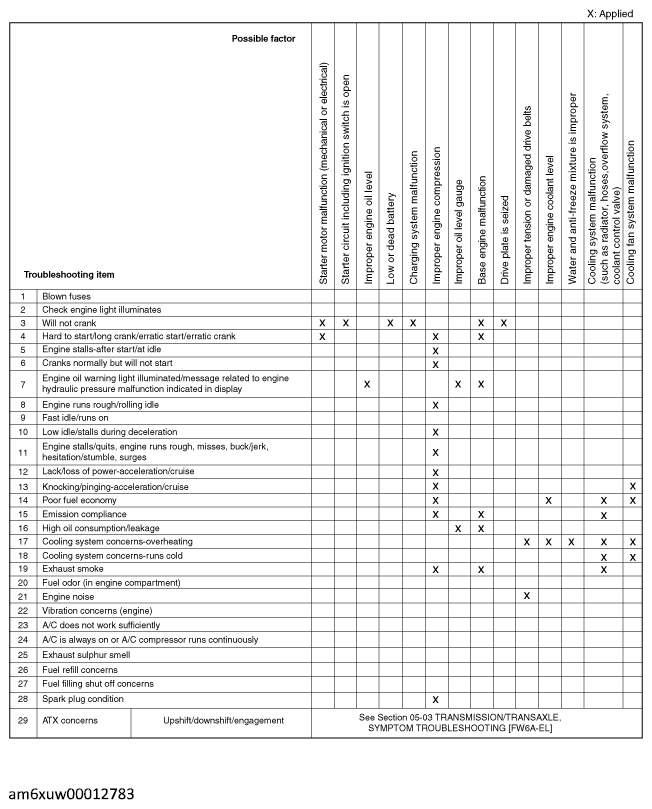

Fig 8: Quick Diagnostic Chart - Skyactiv-G 2.5 (With Cylinder Deactivation; 8 Of 8)

Courtesy of MAZDA MOTORS CORP.
