Control System Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

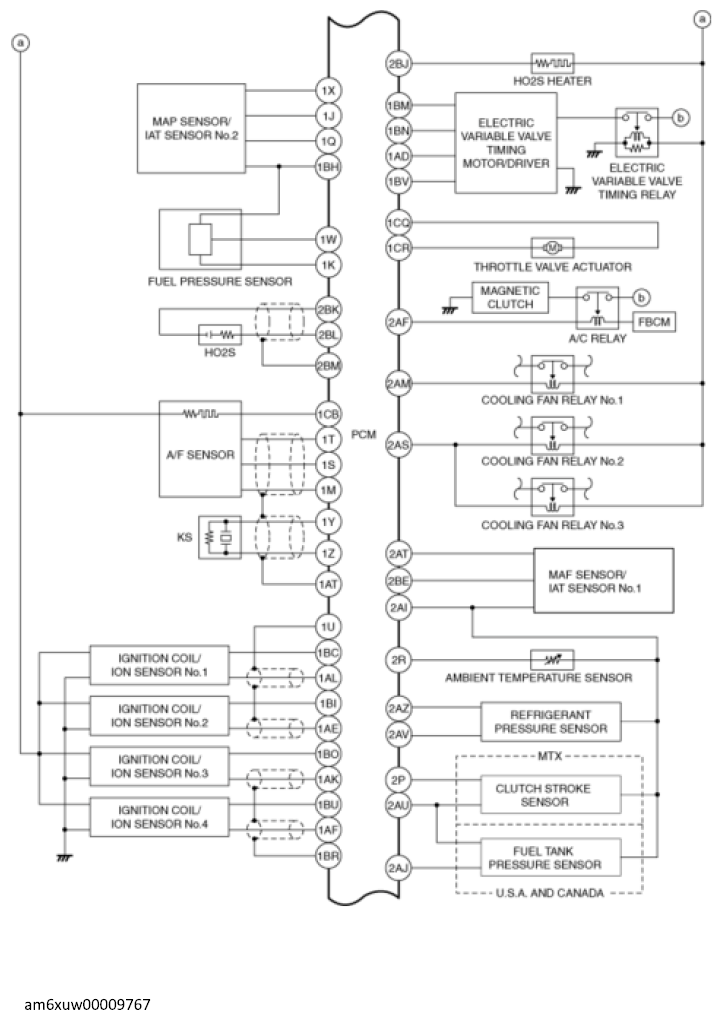

Fig 1: Control System Wiring Diagram (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

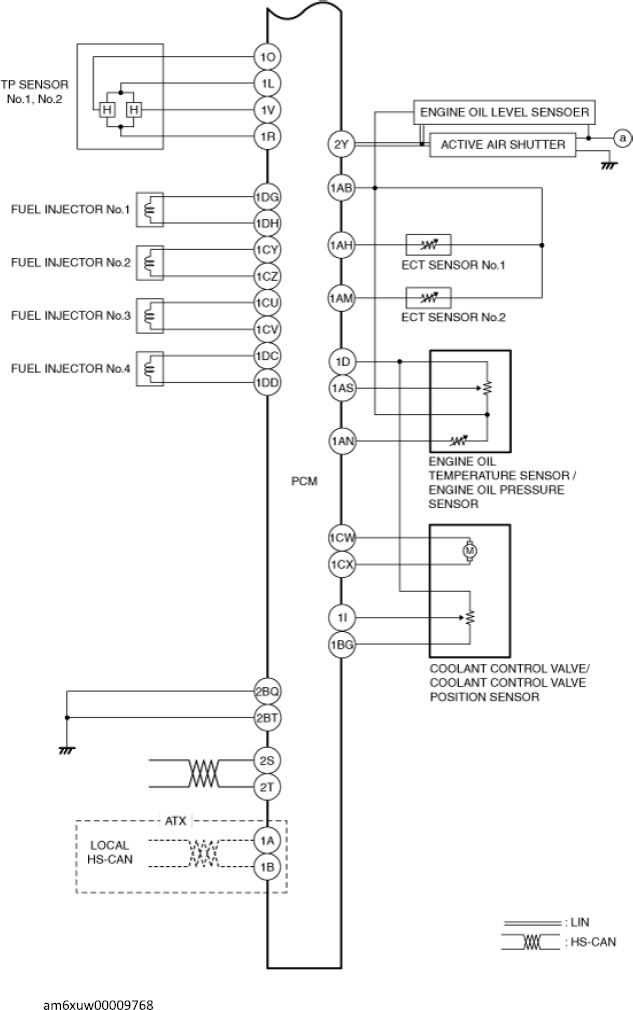

Fig 2: Control System Wiring Diagram (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

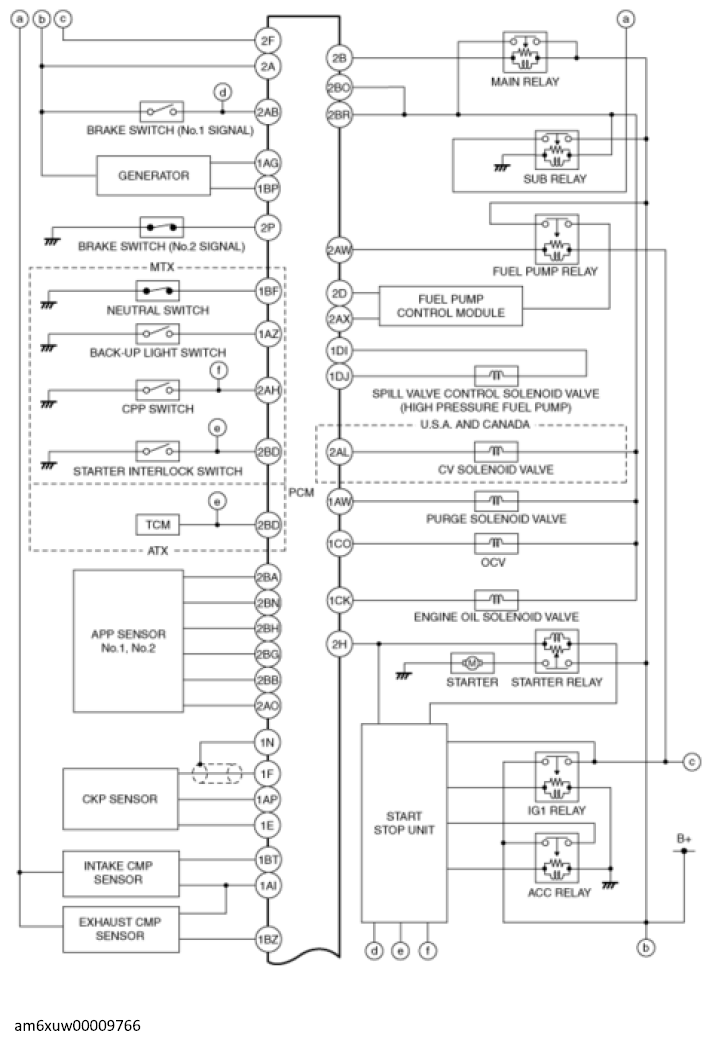

Fig 3: Control System Wiring Diagram (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
