Automatic Transaxle Fluid (ATF) Replacement

WARNING:

Do not perform the servicing while the ATF is hot. Otherwise, it could cause severe burns or serious injury.

Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Remove the dipstick securing bolt.

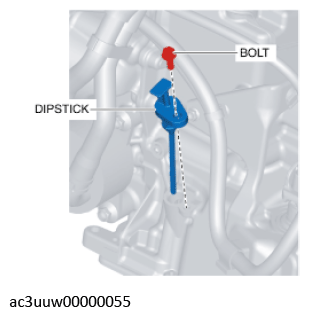

Fig 1: Removing Dipstick With Securing Bolt
Courtesy of MAZDA
Remove the dipstick.
Remove the drain plug and washer, and drain the ATF.

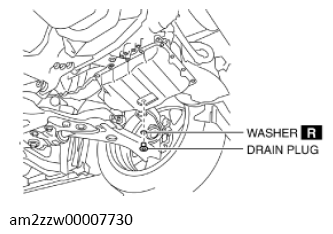

Fig 2: Removing Drain Plug And Washer
Courtesy of MAZDA
Install a new washer and drain plug.
Tightening torque

30-41 N.m {3.1-4.1 kgf.m, 23-30 ft.lbf}

Add ATF from the dipstick installation hole.

NOTE:

The ATF color is blue.
Only use ATF FZ for the EW6A-EL, EW6AX-EL.

ATF type	Resupply amount (Reference)
ATF FZ	ATF is drained from drain plug: 3.3 L {3.5 US qt, 2.9 Imp qt}

Adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT .)
Insert the dipstick and install the securing bolt.

Fig 3: Installing Dipstick With Securing Bolt
Courtesy of MAZDA

Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
Install the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
