Terminal Voltage Table (Reference)

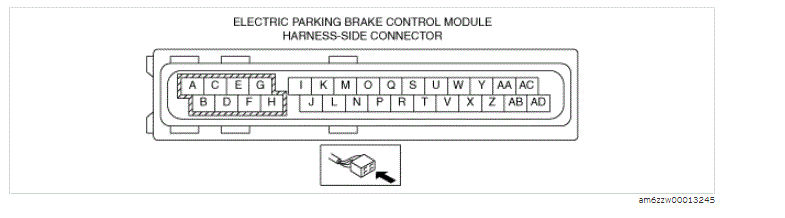

Fig 1: Electric Parking Brake Control Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.

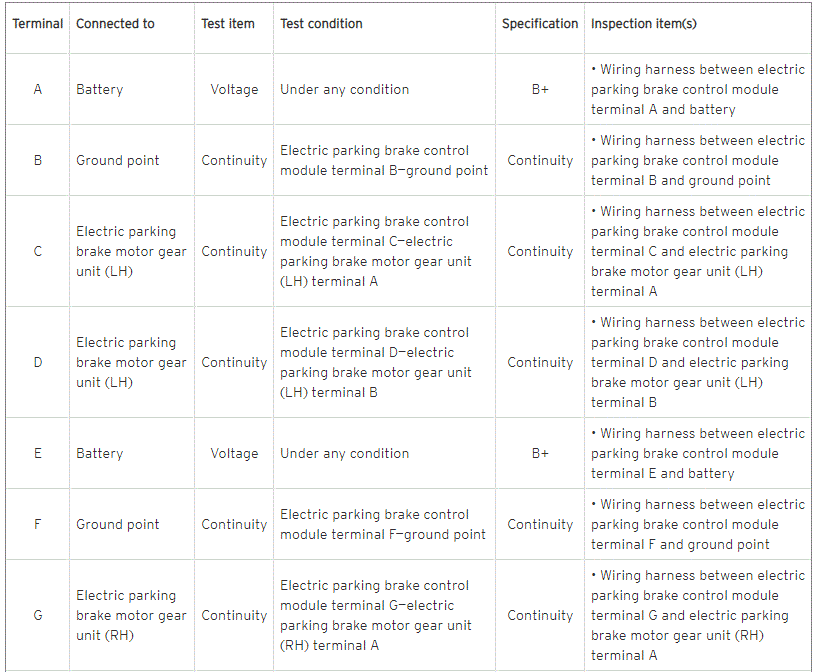

Fig 2: Terminal Voltage Table (Reference) (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

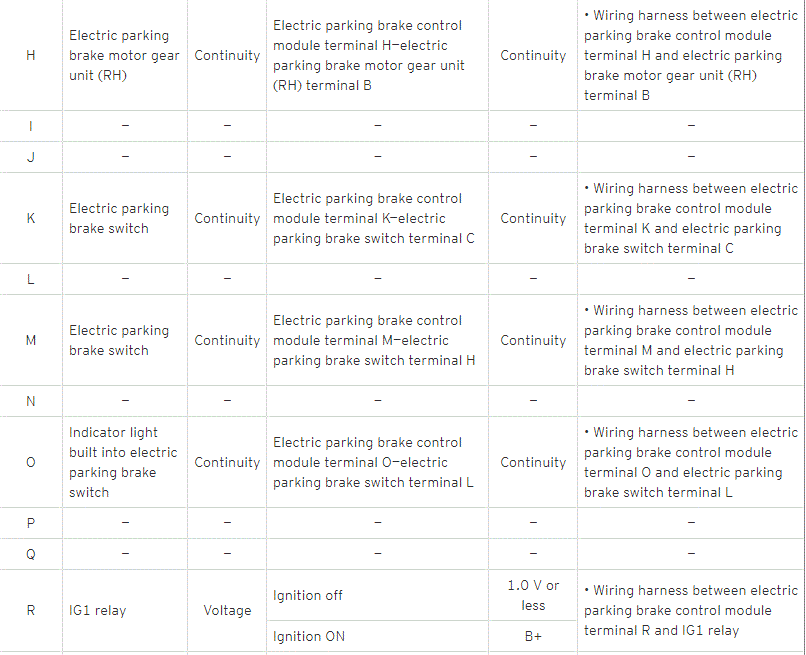

Fig 3: Terminal Voltage Table (Reference) (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

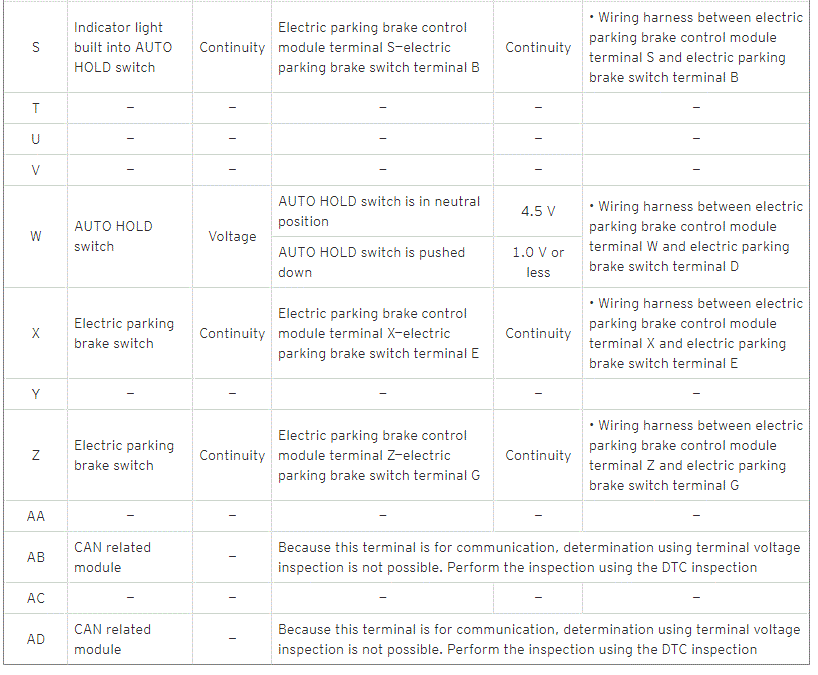

Fig 4: Terminal Voltage Table (Reference) (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
