Troubleshooting Procedure

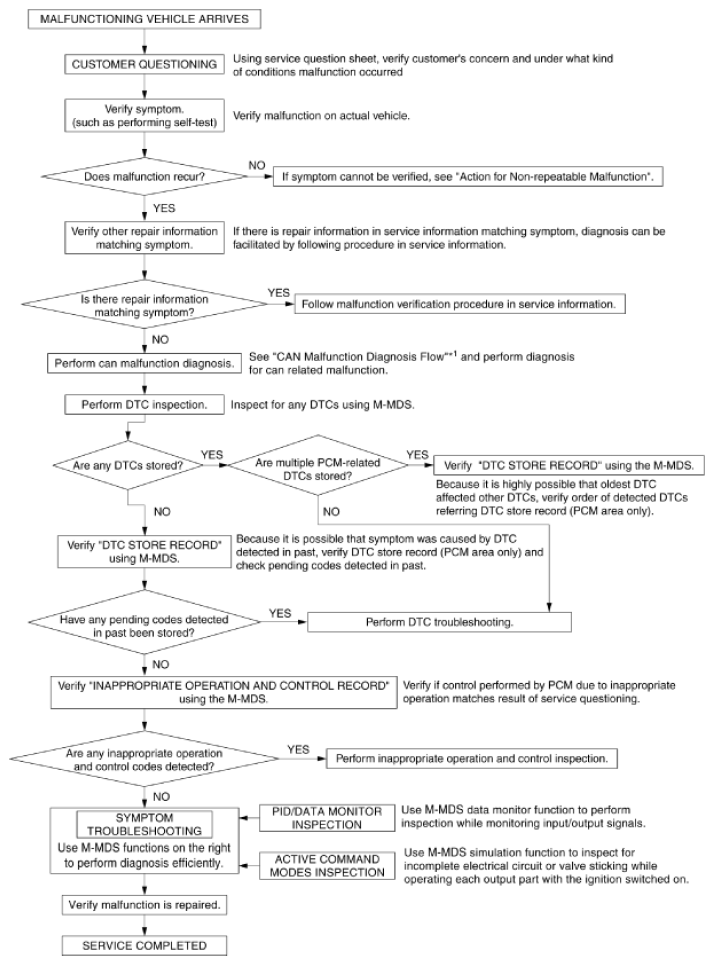

Fig 1: Foreword Troubleshooting Procedure Chart
G11276039Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
