Foreword
›
Troubleshooting Procedure
Troubleshooting Procedure

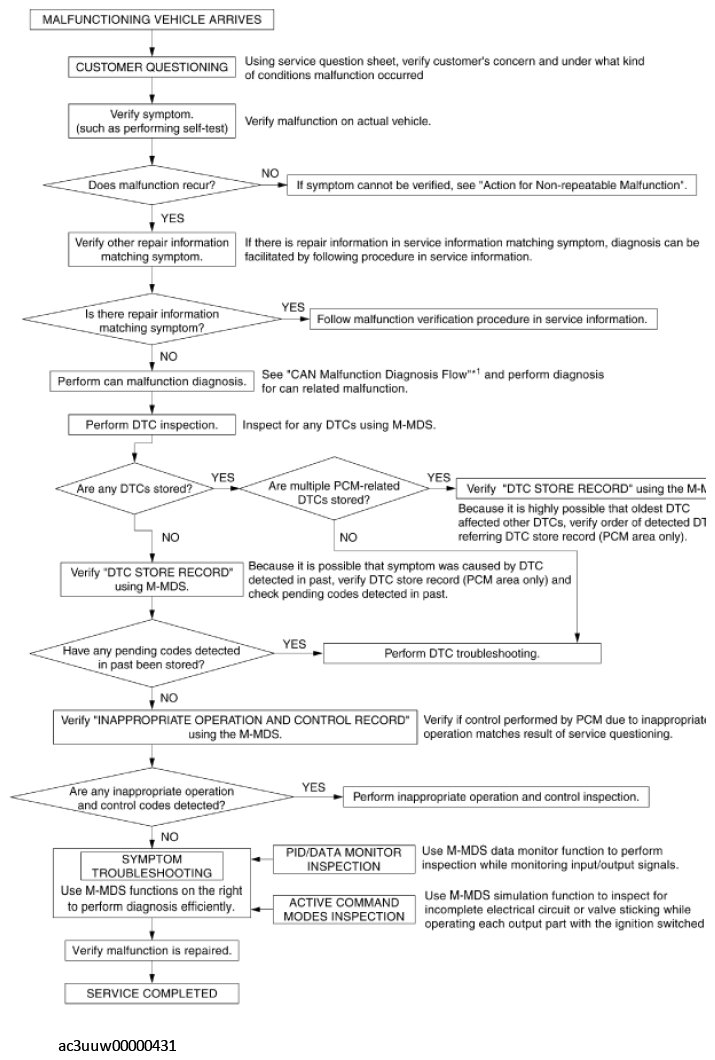

Fig 1: Foreword (SKYACTIV-G 2.0) Troubleshooting Procedure Flowchart
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
