360° View Monitor Control Module Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts.
1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
5. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
6. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
8. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
9. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
Partially peel back the floor covering.
Remove the foot support. (See FOOT SUPPORT REMOVAL/INSTALLATION .)
Remove the nuts.

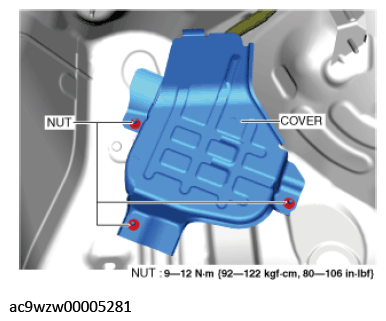

Fig 1: Locating Cover And Nuts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the cover.
Disconnect the connector.

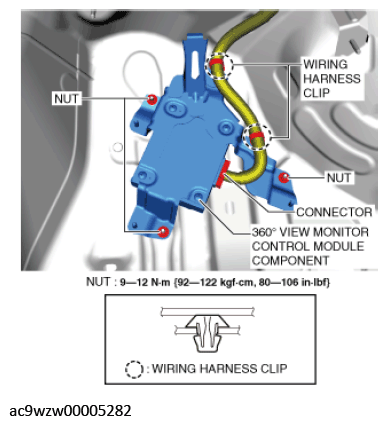

Fig 2: Removing Wiring Harness Clips With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the wiring harness clips.
Remove the nuts.
Remove the 360° view monitor control module component.
Remove the screws.

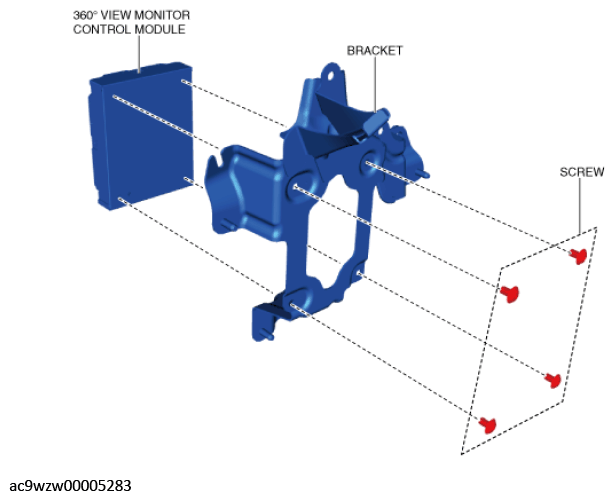

Fig 3: Removing 360° View Monitor Control Module And Screws
Courtesy of MAZDA MOTORS CORP.
Remove the 360° view monitor control module from the bracket.
Install in the reverse order of removal.
Perform the 360° view monitor system aiming. (See 360° VIEW MONITOR SYSTEM AIMING .)
