Instrument Cluster Personalization Features Setting Procedure
›
Temperature
›
Using Instrument Cluster (Without Center Display)
Using Instrument Cluster (Without Center Display)

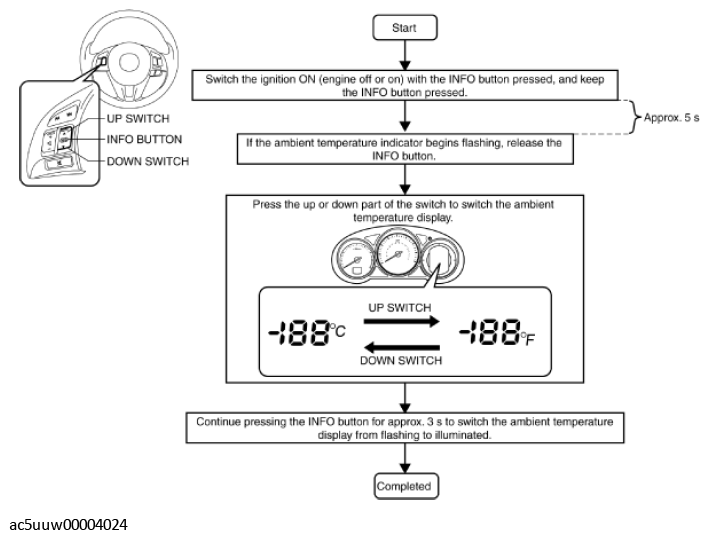

Fig 1: Instrument Cluster Process Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
