Throttle Body Installation Note

Install the throttle body.
Install the bolt shown in the figure below.

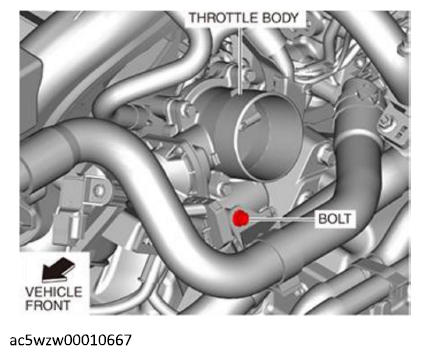

Fig 1: Throttle Body And Bolt
Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
