DTC U0305-00: Radar Unit Error: Notes
DTC U0305:00 PCM (SKYACTIV-G 2.5 - WITH CYLINDER DEACTIVATION) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC U0305:00 |
Radar Unit Error |
| DETECTION CONDITION |
- When any of the following conditions is met:
- CAN communication line malfunction between radar unit and PCM
- Radar unit internal malfunction
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- CAN drive error (instrument cluster or PCM)

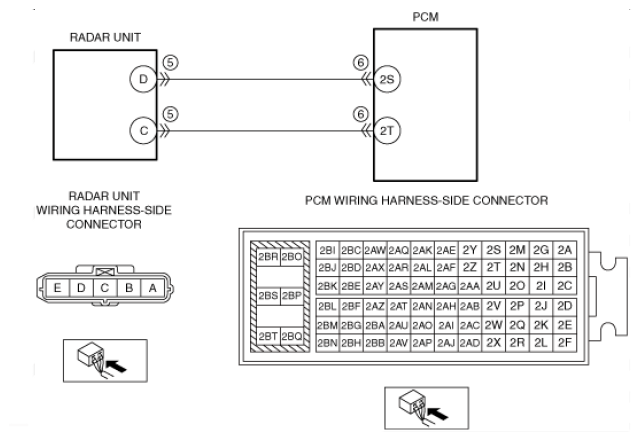

- CAN communication line malfunction between radar unit and PCM
- Radar unit terminal D-PCM terminal 2S
- Radar unit terminal C-PCM terminal 2T
- Radar unit connector or terminals malfunction
- PCM connector or terminals malfunction
- Radar unit malfunction
- PCM malfunction
|
|
|
