DTC U0315-00: DSC HU/Control Module Error: Notes
DTC U0315:00 PCM (SKYACTIV-G 2.5 - WITH CYLINDER DEACTIVATION) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC U0315:00 |
DSC HU/Control Module Error |
| DETECTION CONDITION |
- When any of the following conditions is met:
- CAN communication line malfunction between DSC HU/Control Module and PCM
- DSC HU/Control Module internal malfunction
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- CAN drive error (DSC HU/Control Module or PCM)
- CAN communication line malfunction between DSC HU/Control Module and PCM

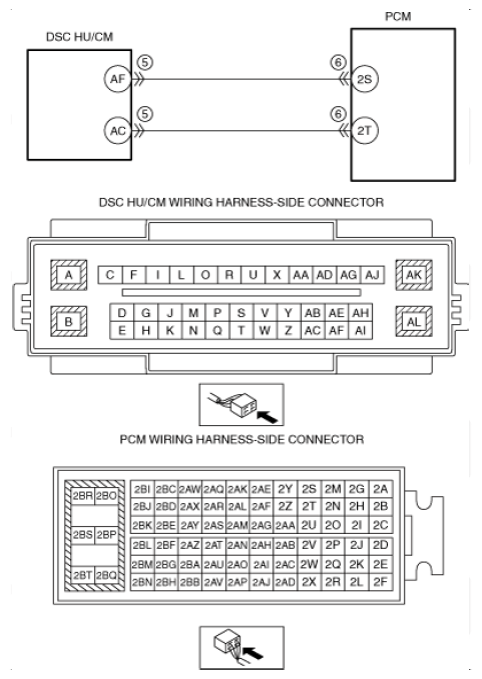

- DSC HU/Control Module terminal AF-PCM terminal 2S
- DSC HU/Control Module terminal AC-PCM terminal 2T
- DSC HU/Control Module connector or terminals malfunction
- PCM connector or terminals malfunction
- DSC HU/Control Module malfunction
- PCM malfunction
|
|
|
