DTC U2300-00: Global Central Configuration Error: Notes

• Any of following conditions occurs:
  • No configuration of the instrument cluster.
  • The configuration signal with the estimated CAN ID is not sent from the instrument cluster.
  • The configuration signal value sent via CAN from the instrument cluster is unknown or invalid.
  • The configuration signal value sent via CAN from the instrument cluster is a value other than the estimated value.
  • The configuration signal value sent via CAN from the instrument cluster does not match the PCM value.

• This is a continuous monitor (other).
• The check engine light does not illuminate.
• FREEZE FRAME DATA is not available.
• Snapshot data is available.
• DTC is stored in the PCM memory.

• Operates by the previously learned configuration value.

• CAN drive error (instrument cluster or PCM)
• Configuration data for the instrument cluster is incorrectly set
• CAN communication line malfunction between instrument cluster and PCM

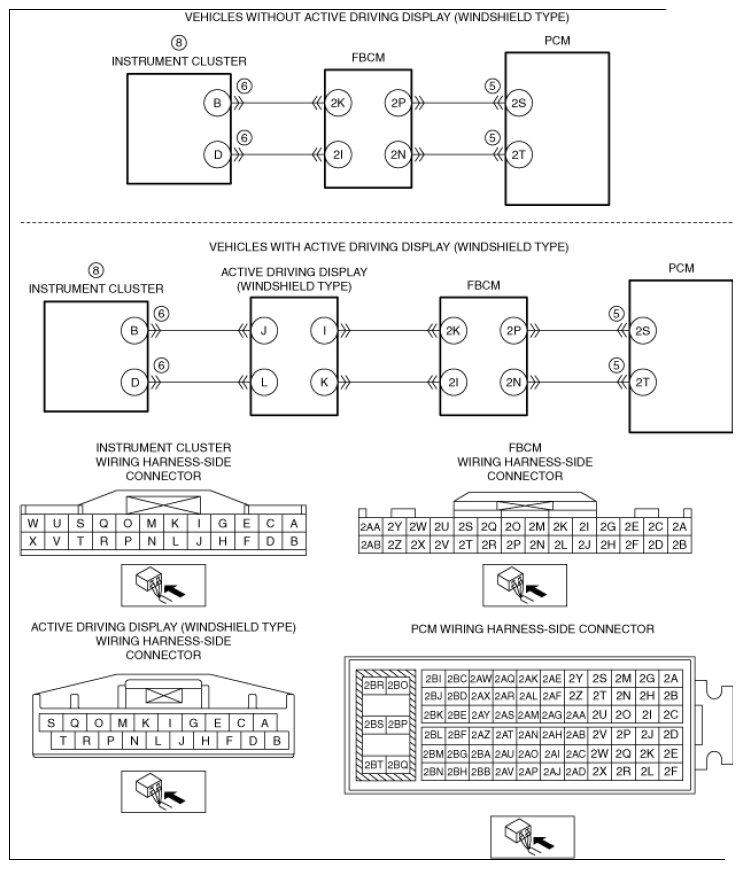

Vehicles without active driving display (windshield type):

• Instrument cluster terminal B-Front body control module (FBCM) terminal 2K
• Instrument cluster terminal D-Front body control module (FBCM) terminal 2I
• Front body control module (FBCM) terminal 2P-PCM terminal 2S
• Front body control module (FBCM) terminal 2N-PCM terminal 2T

Vehicles with active driving display (windshield type):

• Instrument cluster terminal B-Active driving display terminal J
• Instrument cluster terminal D-Active driving display terminal L
• Active driving display terminal I-Front body control module (FBCM) terminal 2K
• Active driving display terminal K-Front body control module (FBCM) terminal 2I
• Front body control module (FBCM) terminal 2P-PCM terminal 2S
  • Front body control module (FBCM) terminal 2N-PCM terminal 2T

• PCM connector or terminals malfunction
• Instrument cluster connector or terminals malfunction
• Instrument cluster loose
• Instrument cluster malfunction
• Error in non-volatile memory in PCM
• PCM malfunction
