Front Combination Light Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2018 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order shown in the figure.

    Without adaptive front lighting system (AFS)

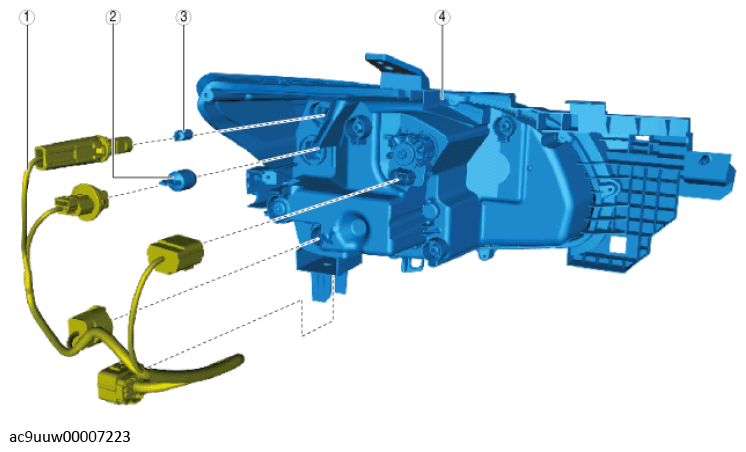

    Fig 1: Disassembling/Assembling Front Combination Light Components (Without Adaptive Front Lighting System)
    G12266583Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Short cord
    (See Short Cord Removal Note .)
    2 Front turn light bulb
    (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .)
    3 Parking light/Front side marker light bulb
    (See PARKING LIGHT BULB REMOVAL/INSTALLATION .)
    (See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .)
    4 Front combination light

    With adaptive front lighting system (AFS)

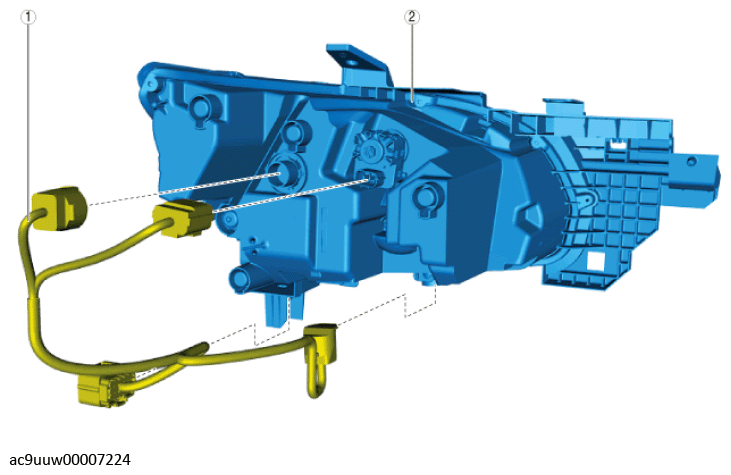

    Fig 2: Disassembling/Assembling Front Combination Light Components (With Adaptive Front Lighting System)
    G12266584Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Short cord
    (See Short Cord Removal Note .)
    2 Front combination light
  2. Assemble in the reverse order of disassembly.
