Air Cleaner Cover Installation Note

Install the air cleaner cover as shown in the figure below.

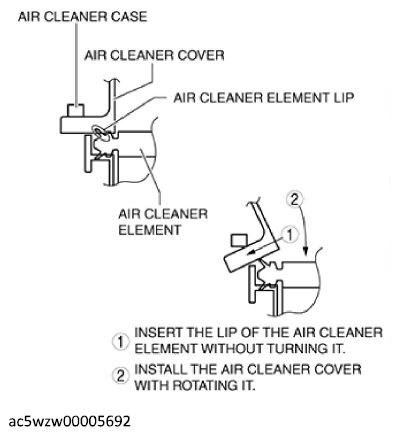

Fig 1: Installing Air Cleaner Cover
Courtesy of MAZDA MOTORS CORP.
Secure the air cleaner cover and the air cleaner case with the clip.

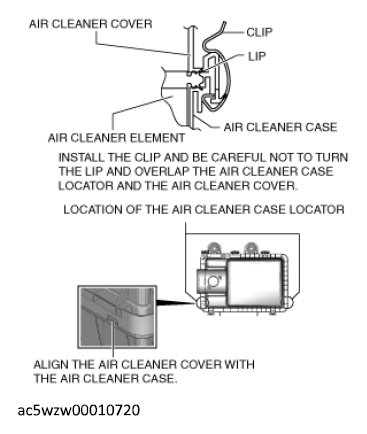

Fig 2: Securing Air Cleaner Cover And Air Cleaner Case With Clip
Courtesy of MAZDA MOTORS CORP.
