Center Display Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

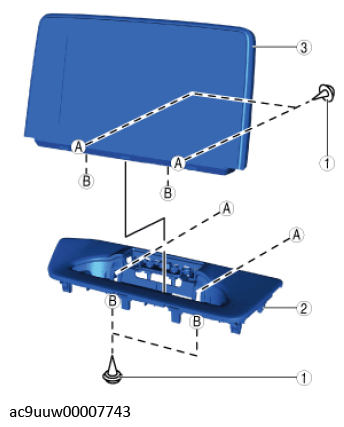

    Fig 1: Disassembling/Assembling Center Display Components
    G12266884Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Screw
    2 Bracket
    3 Center display
  2. Assemble in the reverse order of disassembly.
