Rear Console Component

  1. Disassemble in the order indicated in the table.

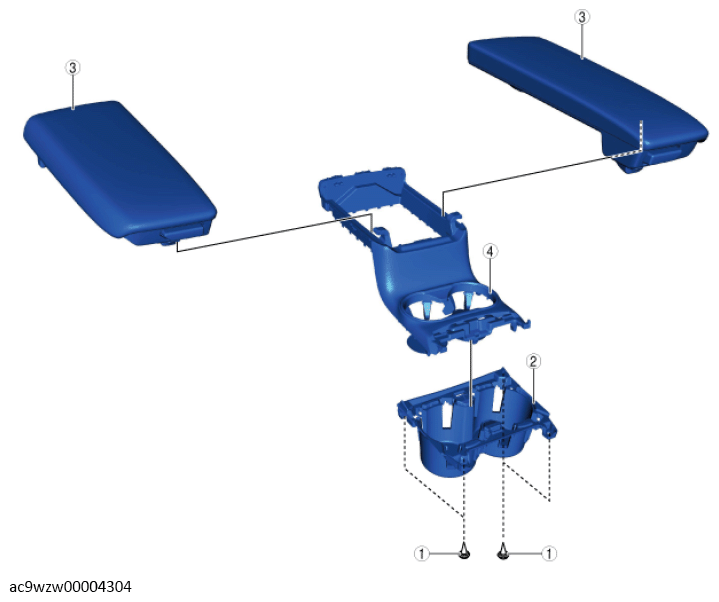

    Fig 1: Rear Console Components Location
    G12266474Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Screw
    2 Cup holder
    3 Rear console lid
    4 Rear console
  2. Assemble in the reverse order of disassembly.
