Power Window System Wiring Diagram (Power Window System)

With auto-open/close function for driver-side window

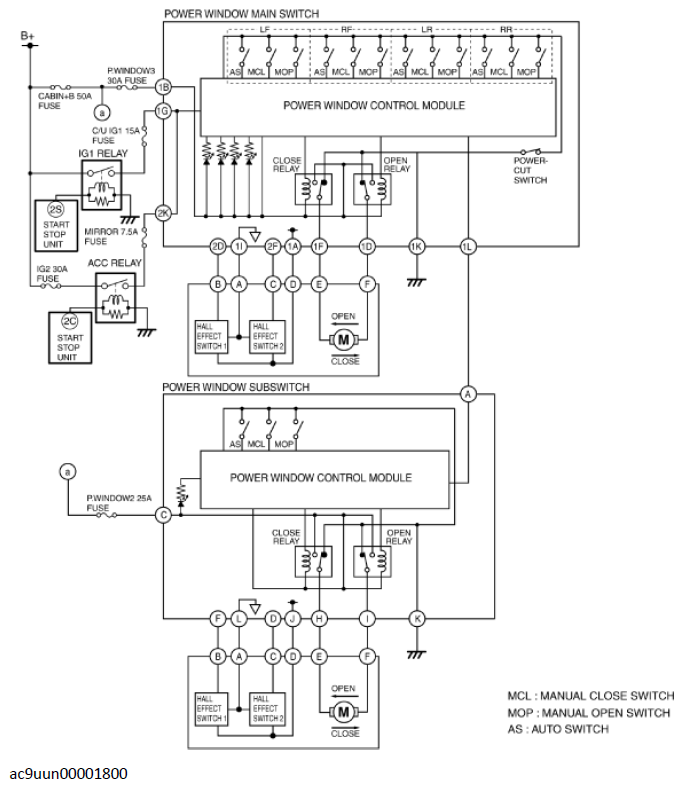

Fig 1: Power Window System Wiring Diagram - With Auto-Open/Close Function For Driver-Side Window

Courtesy of MAZDA MOTORS CORP.

With auto-open/close function for all windows

Fig 2: Power Window System Wiring Diagram - With Auto-Open/Close Function For All Windows

Courtesy of MAZDA MOTORS CORP.
