System Wiring Diagram (DSC HU/Control Module)

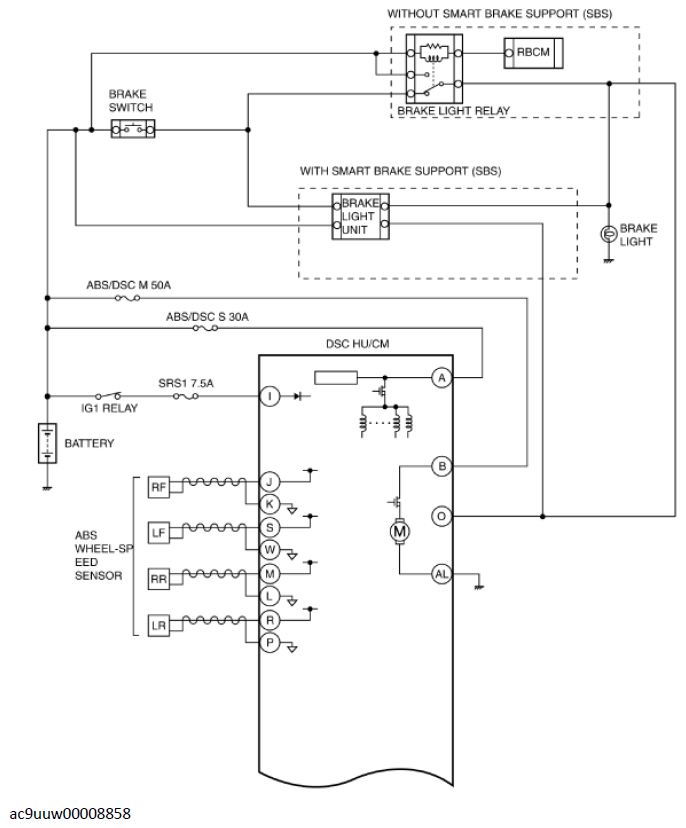

Fig 1: DSC HU/Control Module System Wiring Diagram (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

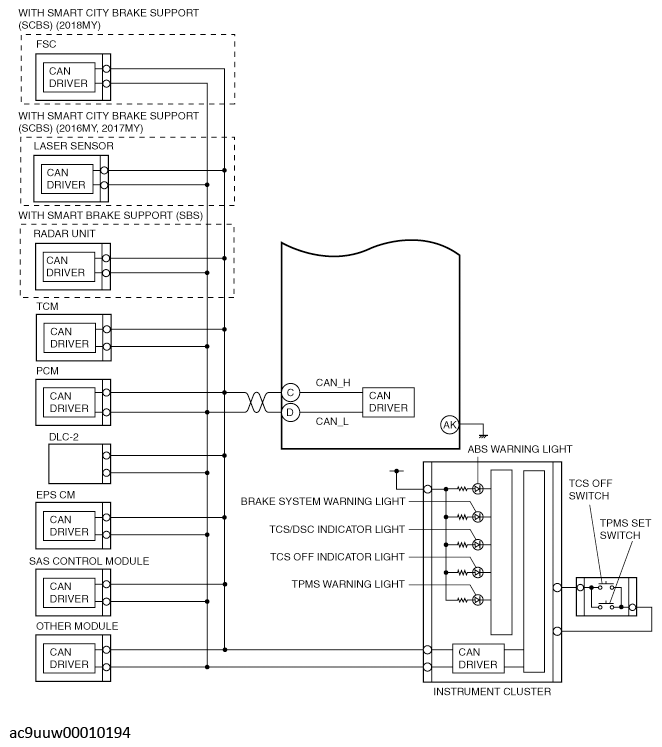

Fig 2: DSC HU/Control Module System Wiring Diagram (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
