Battery Clamp Installation Note

  1. Install the battery clamp as shown in the figure.

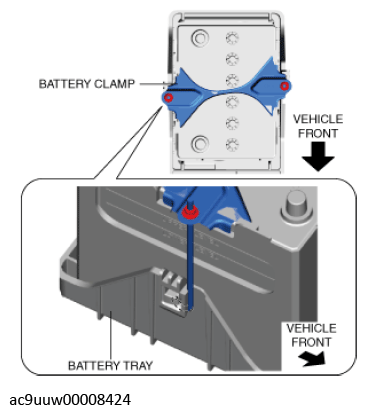

    Fig 1: Battery Tray And Battery Clamp
    G12244497Courtesy of MAZDA MOTORS CORP.
