Except U.S.A. And CANADA: AWD

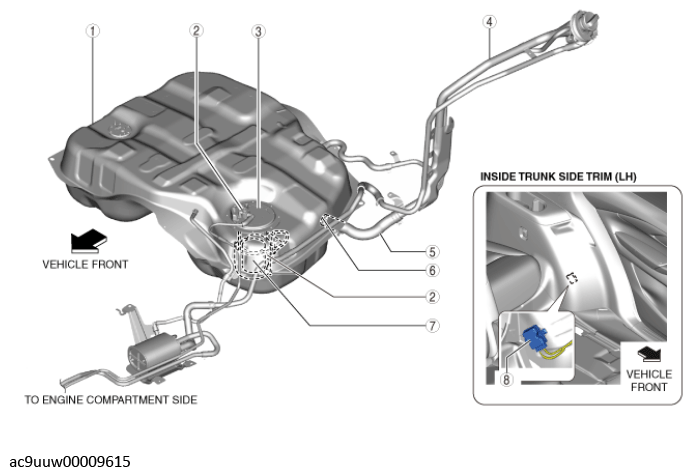

Fig 1: Fuel System Components - Fuel Tank Side (Except U.S.A. And Canada; AWD)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fuel tank (See Fuel Tank Removal/Installation .) (See Fuel Tank Inspection .)
2	Quick release connector (See Quick Release Connector Removal/Installation .)
3	Fuel pump unit (See Fuel Pump Unit Removal/Installation .) (See Fuel Pump Unit Disassembly/Assembly .) (See Fuel Pump Unit Inspection .)
4	Fuel-filler pipe (See Fuel-Filler Pipe Removal/Installation .)
5	Joint hose (See Fuel Tank Removal/Installation .)
6	Non-return valve (See Non-Return Valve Inspection .)
7	Fuel filter (high-pressure) (See Fuel Filter (High-Pressure) Removal/Installation .)
8	Fuel pump control module (See Fuel Pump Control Module Removal/Installation .) (See Fuel Pump Control Module Inspection .)
